| Certificate | ATEX, IECEx |
| Classification | Group II, Zone 1 &21 and 2&22 |
| Ex Mark | Ex db eb, Ex tb |
| IP Grade | IP66 |
| Rated voltage | Max. 415V AC, 250V DC |
| Rated current | 6A、10A、16A |
| Ambient Temperature | -40°C~+40/45/50/55/60/65/70°C |
| Built-in components | K0101 explosion-proof control button |
| K0102 explosion-proof signal lamp | |
| K0101-S explosion-proof control switch | |
| K0109 explosion-proof ammeter | |
| Enclosure | GRP (Polyester resin,glass fibre reinforced), antistatic |
| Rain shade | Bended steel plate surface powder coated (black color) or stainless steel 304/316, please note when needed |
| Exposed fastener | Stainless steel,anti-drop structure |
| Installation method | Hanging type |
| Cable Entry | φ25.5mm The cable gland is not available when delivery, please indicate if necessary. |

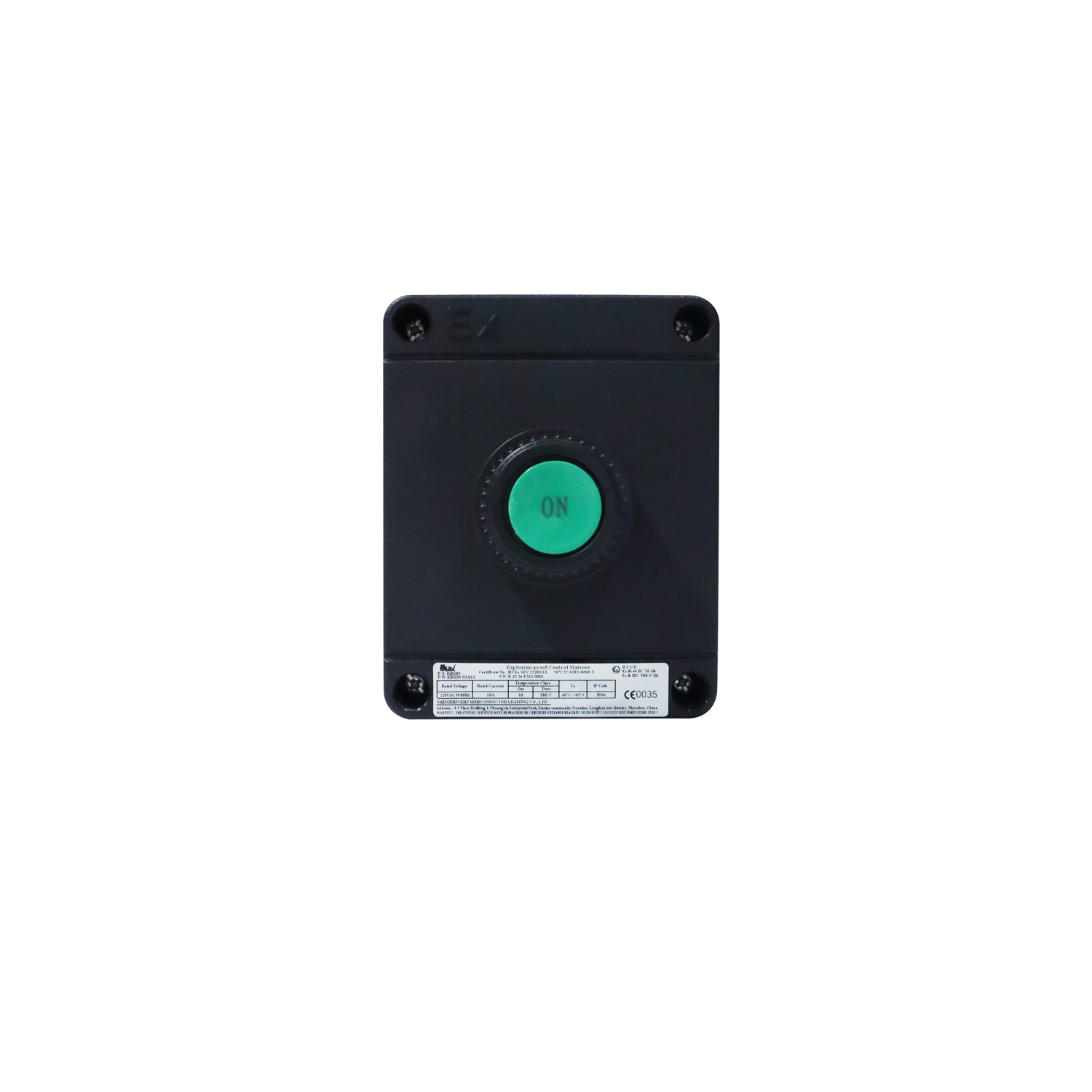

The KBX05 series explosion-proof control station can be widely used for hazardous area Zone 1&2, Zone 2&22 where flammable vapors, gases, ignitable dusts, fibers or flyings are present.
Focus on security and energy-saving, Carry brightness and Sustainable future.
