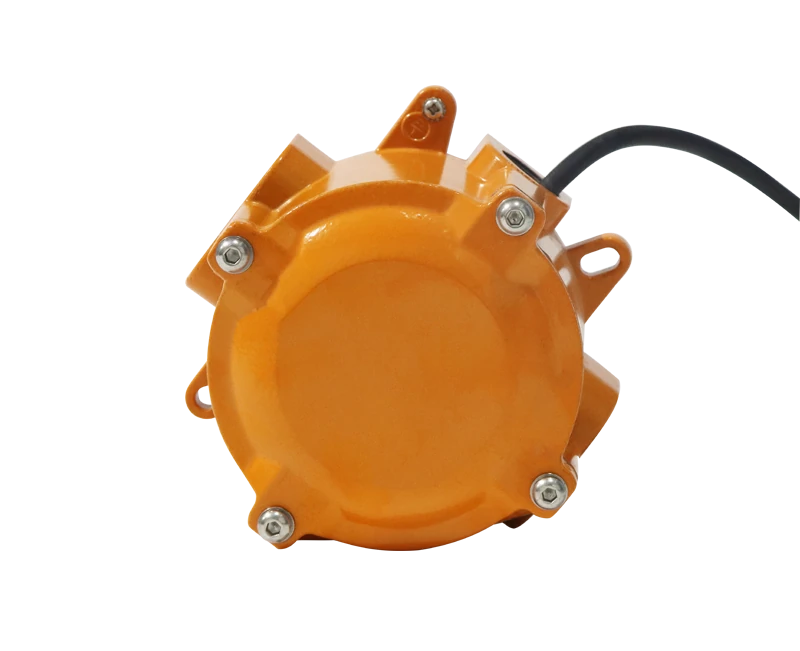

KBH31/32 Series- Explosion proof Terminal Box

Features:

  • Application in hazardous area : Zone 0, Zone 1 and Zone 2, Zone 21 and Zone 22
  • This series have 4 types explosion protection (Ex db, Ex ia, Ex ib and Ex tb IIIC), which can meet various requirements.
  • There are 6 types of enclosure which the current, terminal and direction of entry can be customized based on customer requirements.
  • Stainless steel exposed fastener .
  • Easy installation and maintenance.

lmportant Specification:

Certificate ATEX, IECEx

Ex mark
Ex ia IIC T6 Ga
Ex ib IIC T6 Gb
Ex db IIC T6 Gb
Ex tb IIIC T80°C Db
Enclosure material Aluminum alloy enclosure, powder coated
Enclosure color Industrial gray with dark lines texture(RAL7035)
Exposed fastener Stainless steel
Rated voltage Ex e, Ex tb : Max 500VAC ,220VDC
Ex i, Ex tb: Max AC/DC 36V
Cable cross section 0.2〜4.0mm2
IP Rating IP66
Ambient temperature -60°C~+55°C
Cable gland Standard M20X1.5 ~ M32X1.5
Optional NPT1/2 ~ NPT1

Video

Case study

The KBH31/32 series has 6 types of enclosure which the current, terminal and direction of entry can be customized based on customer requirements.

They also meet the requirements of the IP66 degree of protection, making them perfect for use in harsh and hazardous environments.
