| Certificate | ATEX,IECEx, CE, RoHS |
| Classification | Group II,Zone 2&22 |
| Ex Mark | Ex nR, Ex tb |
| IP Grade | IP66 |
| Rated power | Normal:18W/36W/48W/56W/72W Emergency:5W(18W/36W/48W/56W) |
| Voltage | 110-277 VAC/220-240 VAC 155-392 V DC/311-339 V DC |
| Ambient Temperature | Normal:-40℃-+55℃/ Emergency:-20℃-+55℃ |
| Luminaire Efficacy | Up to 140 lm/W |
| Power factor | >0.98 |
| THD | <10% |
| Weight | Normal:5 .8Kg(0 .6m)8 .5Kg(1 .2m)/ Emergency:6 .8Kg(0 .6m)9 .5Kg(1 .2m) |
| Size | 650 *158 *153mm(18W/36W/48W)/1295 *158 *153mm(36W/48W/56W/72W) |
| Enclosure | Glass Reinforced Plastic |
| Color | Grey RAL7040 |
| Protective cover | PC,Stand 7J impact |
| Cable Entry | 2XM20 *1.5 (M25 *1.5 are optional) |

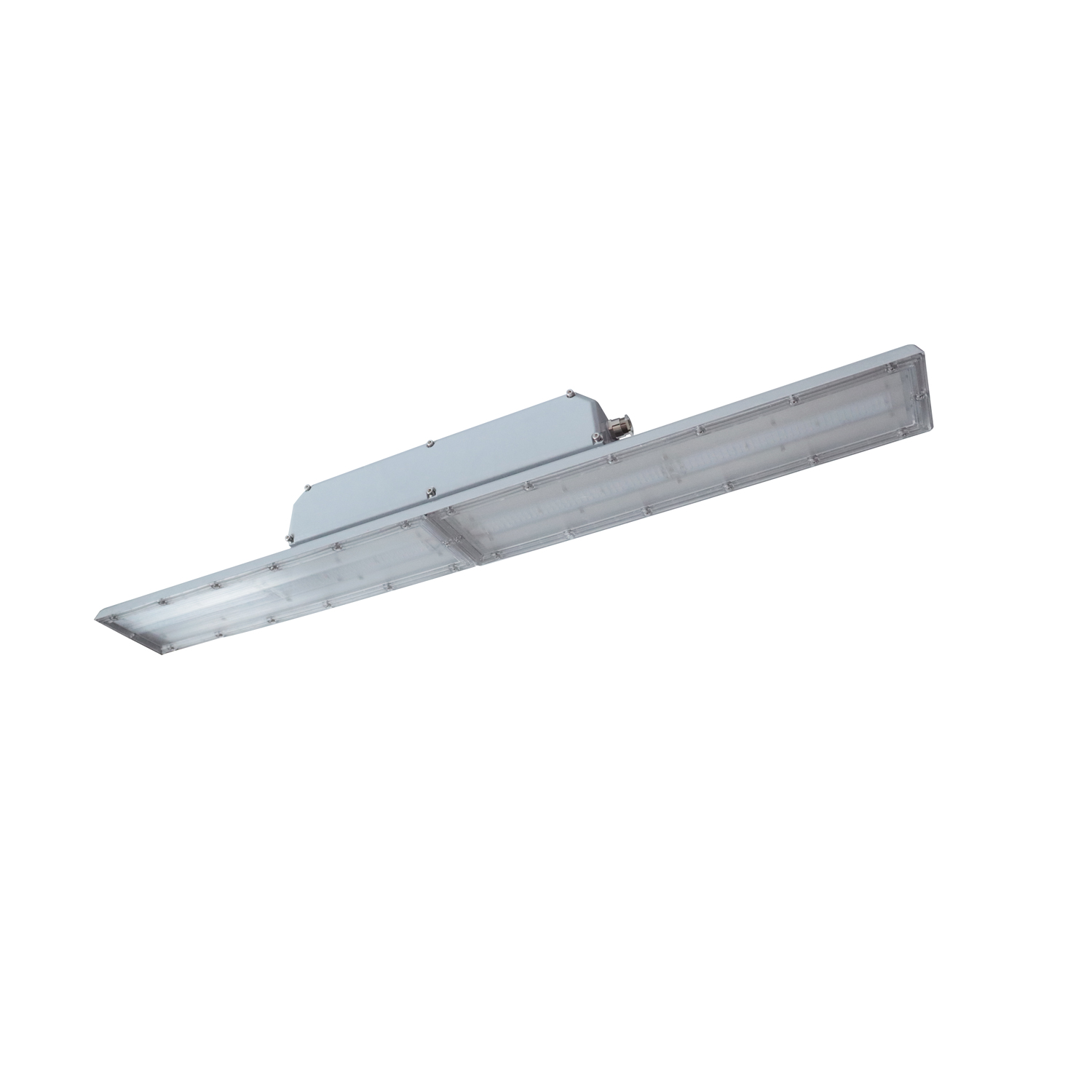

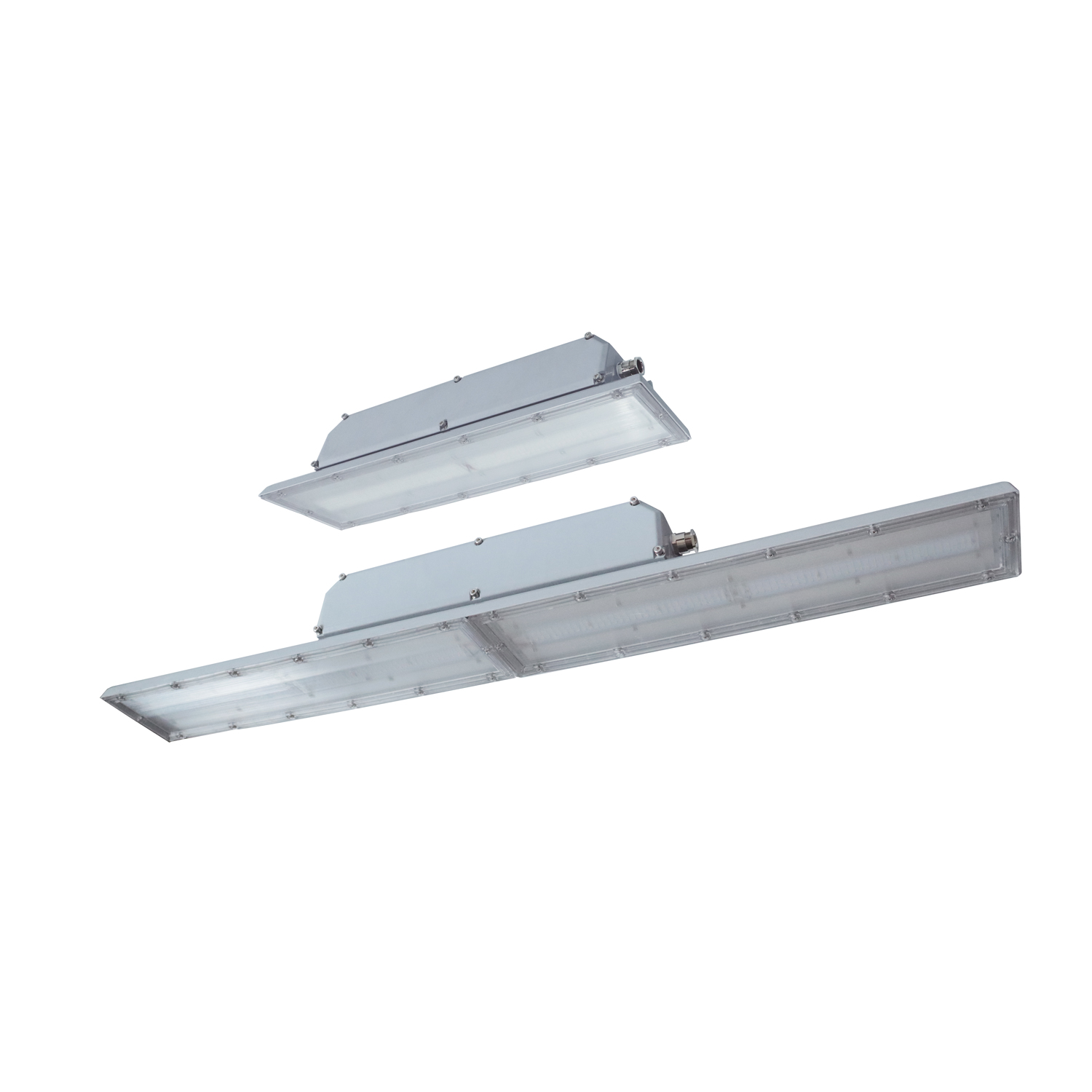

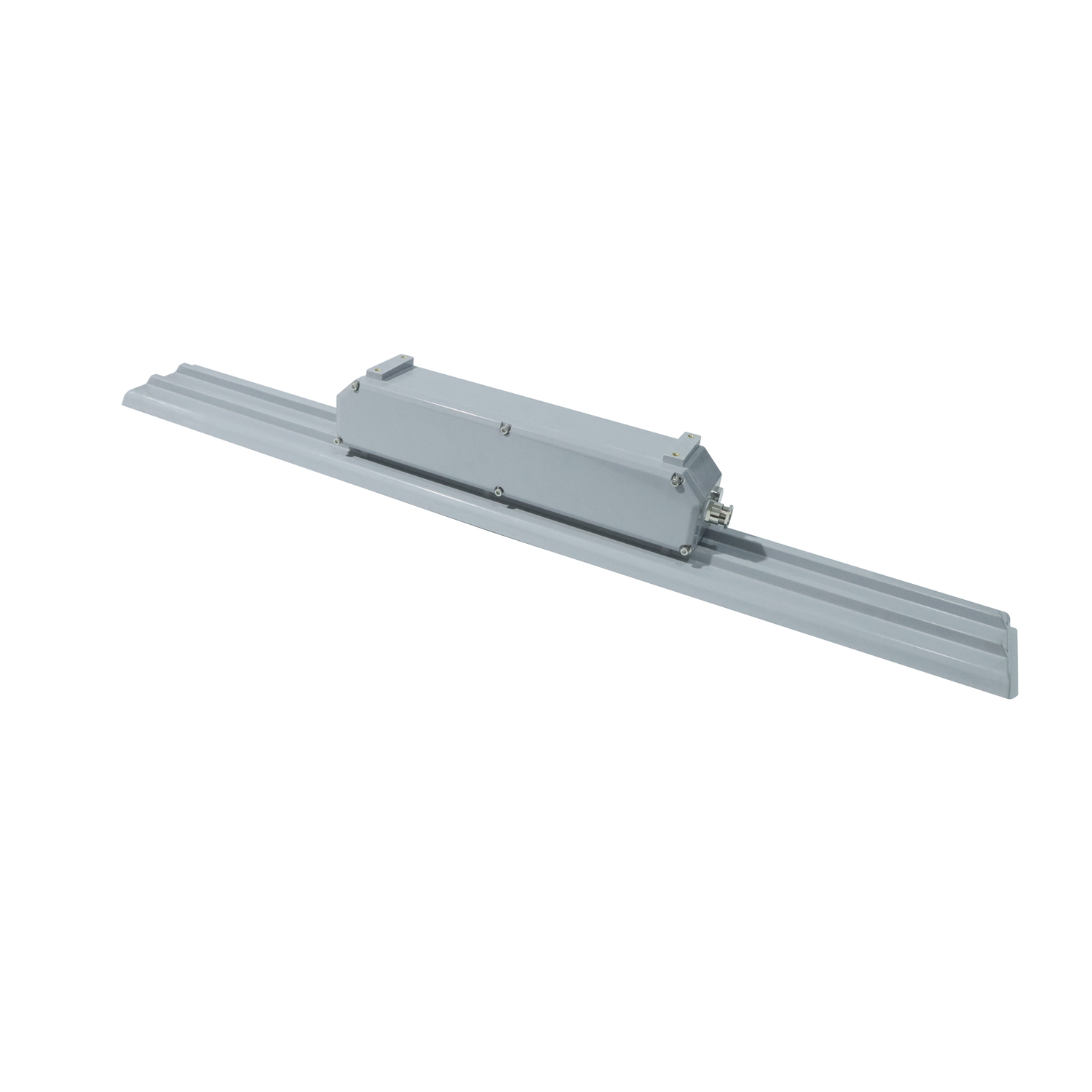

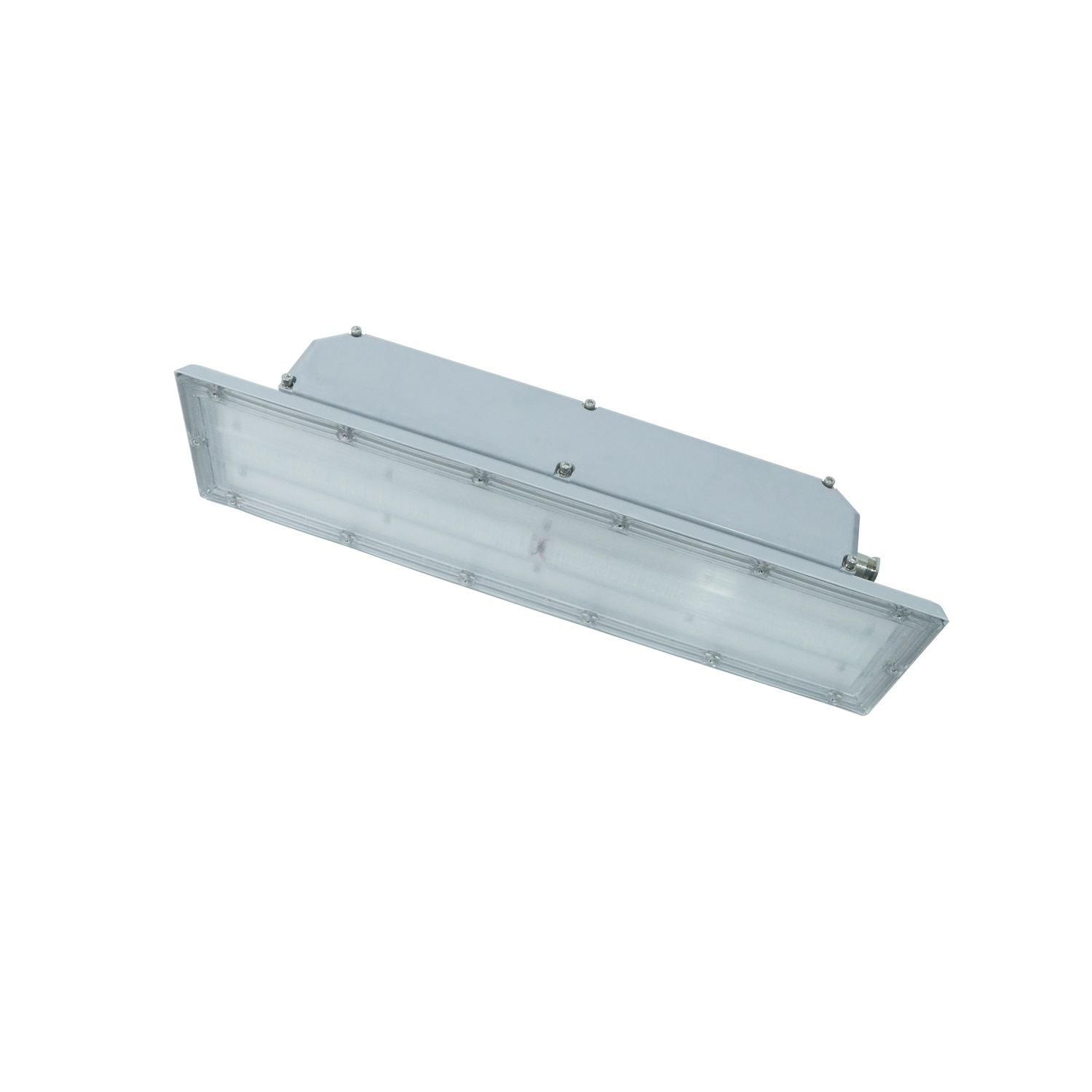

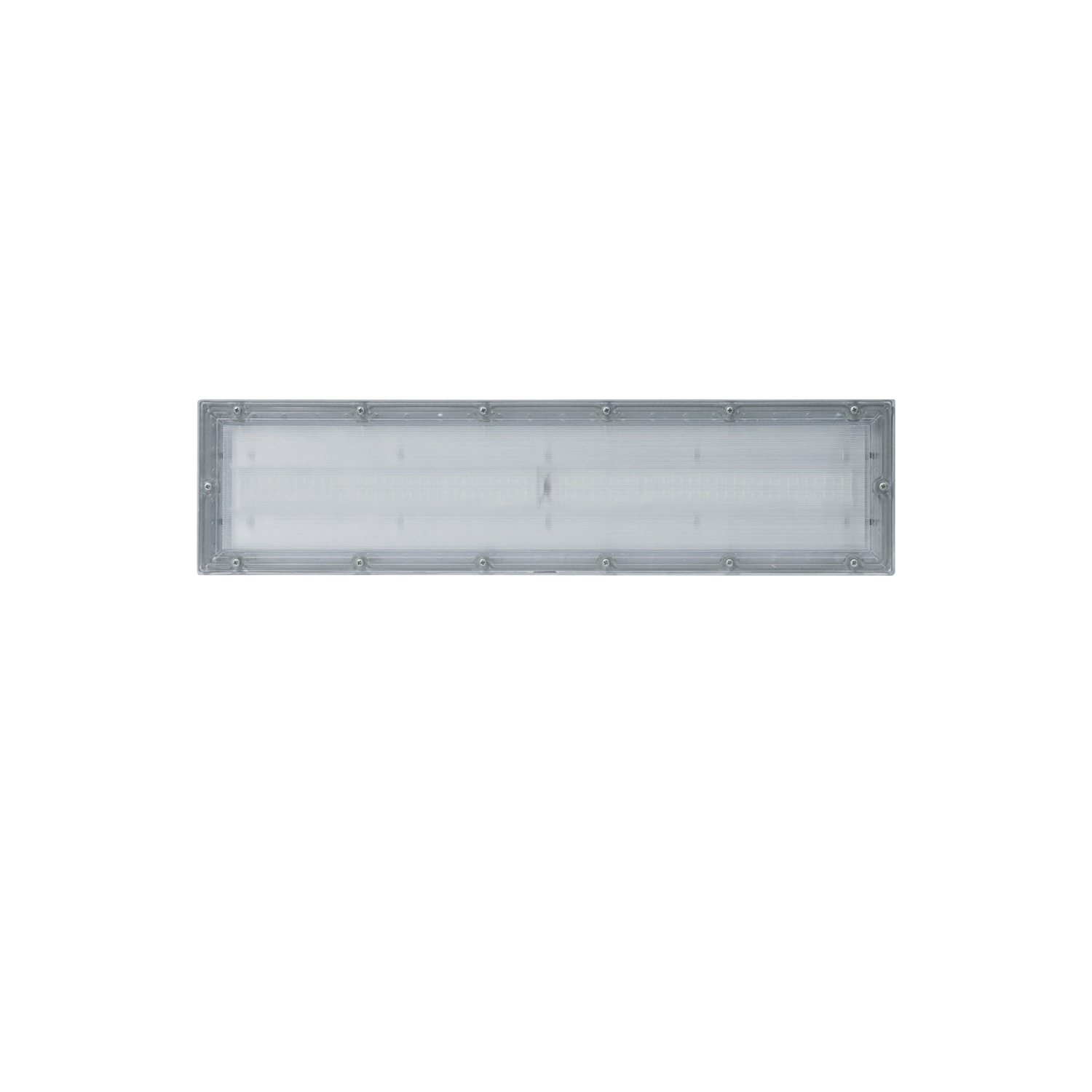

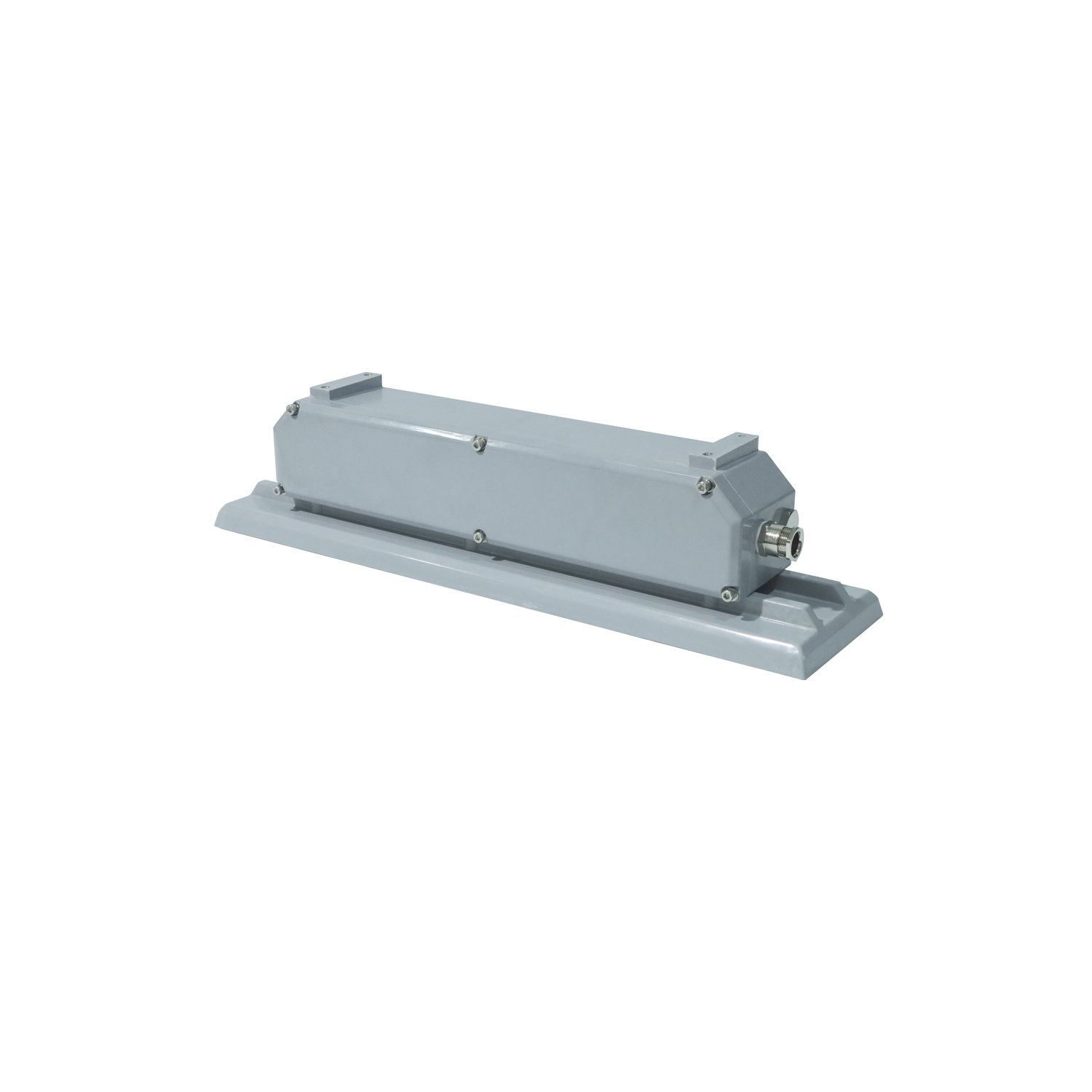

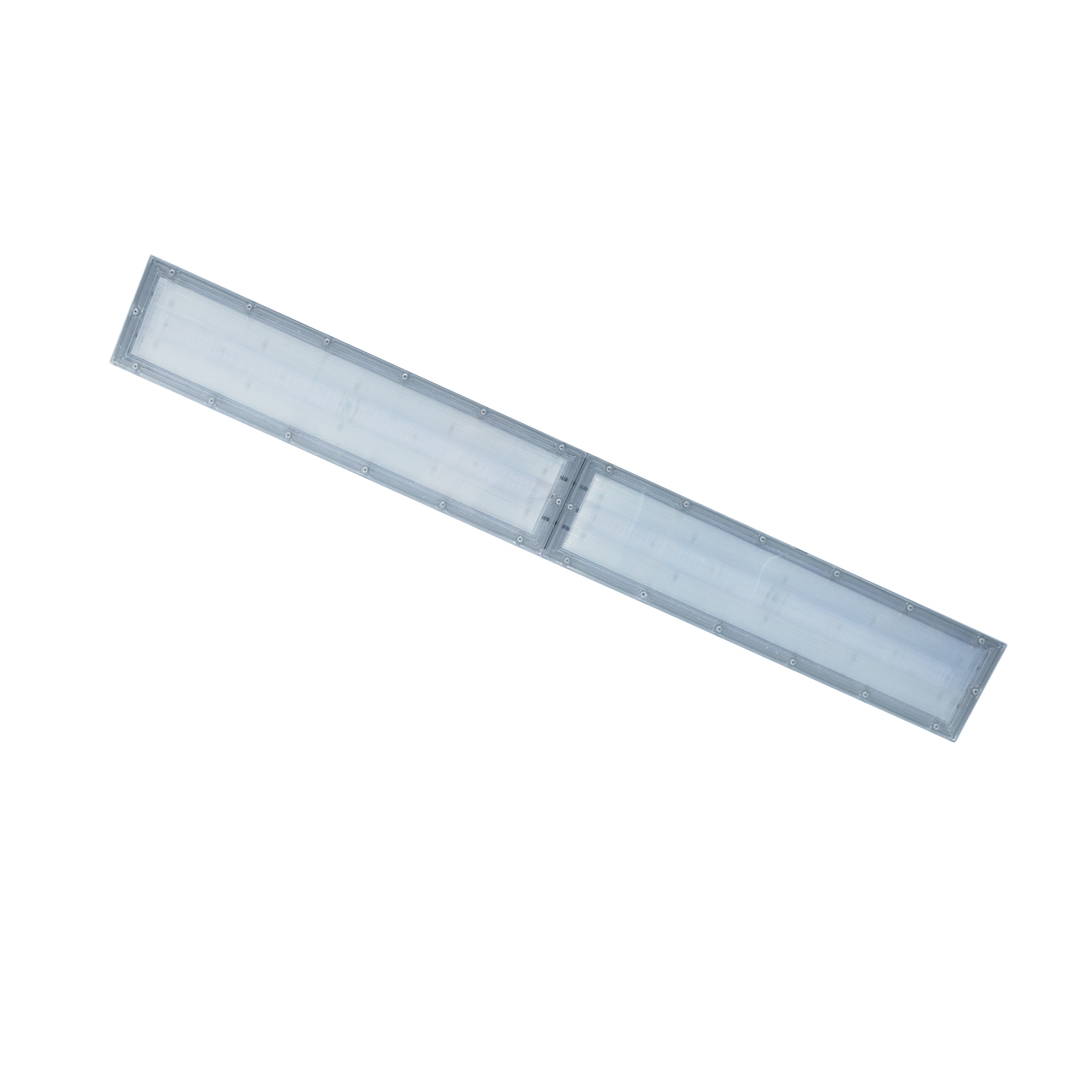

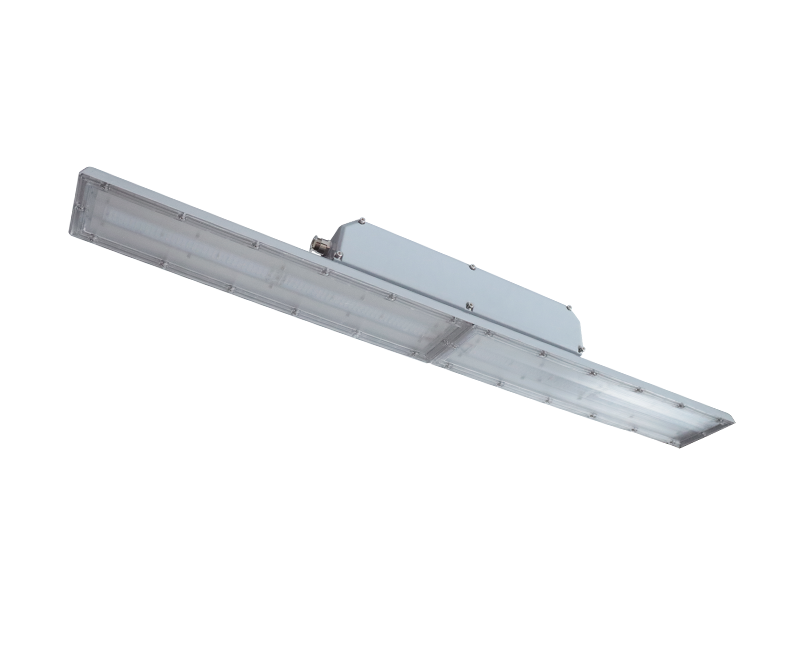

18W,36W,48W,56W,72W Led linear light, IP66, candela distribution similar with fluorescent tube, 2ft and 4ft Length for optional. Ideal to replace EX conventional fluorescent tube 2X18, 2X36W, 2X54W.
Focus on security and energy-saving, Carry brightness and Sustainable future.
