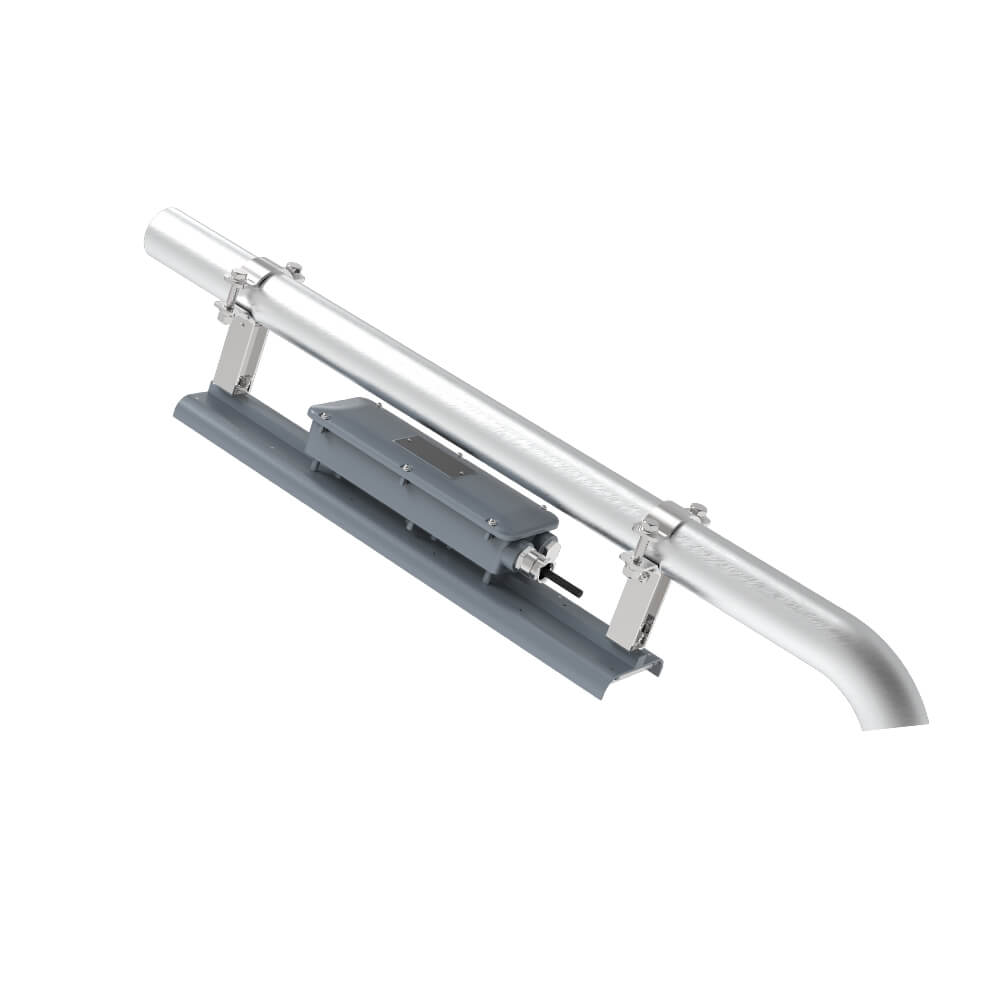

KHJ Lighting-Kingfish Explosion-proof LED Linearlight

Features:

  • 18W,36W,48W,64W for optional.
  • Luminaire efficancy up to 136.5lm/w
  • Widely Voltage: 100-277VAC.
  • 2 feet and 4 feet length.
  • Low THD around 10%,Less interference
  • 5 years performance warranty


lmportant Specification:

Certificate ATEX,IECEx, CE, RoHS
Classification Group II,Zone 1 &21 and 2&22
Ex Mark Ex eb mb, Ex tb
IP Grade IP66
Rated power 18W/36W/48W(0.6m),48W/64W(1.2m)
Voltage 100-277 VAC
141-392 VDC
Ambient Temperature -40℃-+55℃/-40℃-+65℃
Luminaire Efficacy Up to 136.5lm/w
Power factor >0.98
THD <10%
Weight 10.5Kg
Size 600*110*103mm(18W/36W/48W)/1200*110*103mm(48W/64W)
Enclosure Copper-free Aluminium alloy
Color Grey RAL7040
Protective cover PC,Stand 7J impact
Cable Entry 1XNPT 3/4” (M20*1.5, M25*1.5 are optional)

Case study

18W,36W,48W,64W Led linear light, IP66, candela distribution similar with fluorescent tube, 2ft and 4ft Length for optional. Ideal to replace  EX conventional fluorescent tube 2X18, 2X36W, 2X54W.

Our Kingfish installed in

Malaysia Petranas-Chemical Ethylene Project
Malaysia Petranas-Chemical Ethylene Project
Malaysia Petranas-Chemical Ethylene Project
Malaysia Petranas-Chemical Ethylene Project
