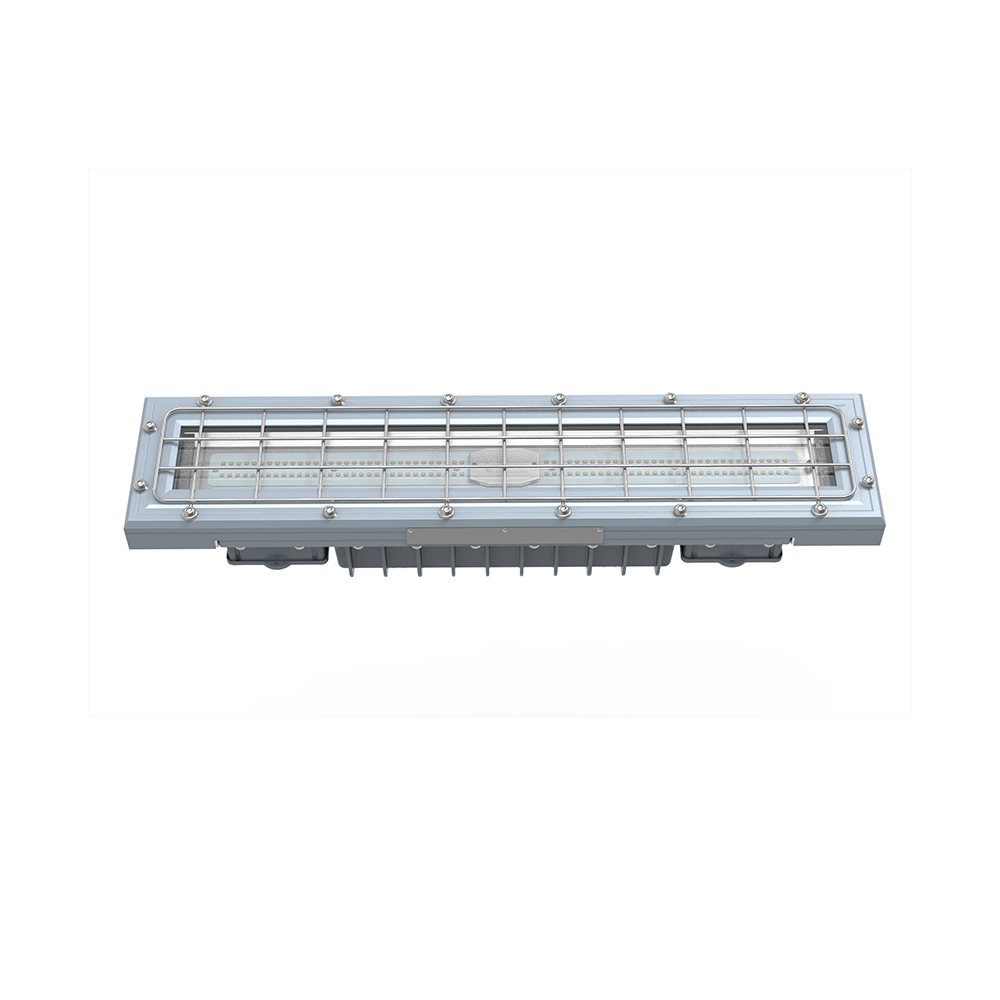

KHJ Lighting-UL Certified LED Industrial Linear lighting/Swordfish

Features:

Wide power range from 18W to 100W
Luminaire efficancy up to 140lm/w
Widely Voltage: 100-277VAC and 141-392 VDC
Different beam angle for optional(Narrow, Medium,Wide)
Copper-free Aluminium enclosure, high impact resistance tempered glass lens.
All exposed fasteners with quality stainless steel 316

Contact us for this product

lmportant Specification:

Certificate	UL , CE, RoHS
IP Grade	IP66
Rated power	18W/36W/48W/56W/72W/100W
Voltage	100-277 VAC/ 141-392 VDC
Ambient Temperature	-20℃-+55℃
Luminaire Efficacy	Up to 140lm/w
Power factor	>0.98
THD	<10%
Weight	6.9Kg(0.6m)/11.5Kg(1.2m)
Size	600136124mm(36W/48W/56W)/1200136124mm(36W/48W/56W/72W/100W)
Enclosure	Copper-free Aluminium
Color	grey RAL7040
Protective cover	Tempered glass, stand 7J impact
Cable Entry	M201.5,M251.5,3/4 NPT

Video

1.Catalog

Catalog 2023.pdf
Click Here

Simple Catalog 2024.pdf
Click Here
2.Swordfish UL IES

Swordfish UL.IES
Click Here
3.Specification

S-KSwordfish-Ex-U-UL-NV2.1(0.6&1.2).pdf
Click Here
4.User manual

I-Swordfish-UL-NV2.0(200301-I02-NV2.0)0.6&1.2m -A4.pdf
Click Here

Case study

The Swordfish series consist of 2 sizes : 600*136*124mm(36W/48W/56W)/1200*136*124mm(36W/48W/56W/72W/100W)
, can be widely used for industrial area like Cement plants, Warehouse, Factory, Power Generation, Power Transmission, Shipping industry.

Our Polar Bear installed in Baker hughes(Brunei) Warehouse Lighting Replacement project.

Our sealion installed in Malaysia Petronas-Chemical Ethylene Project provides clear and efficient illumination.
