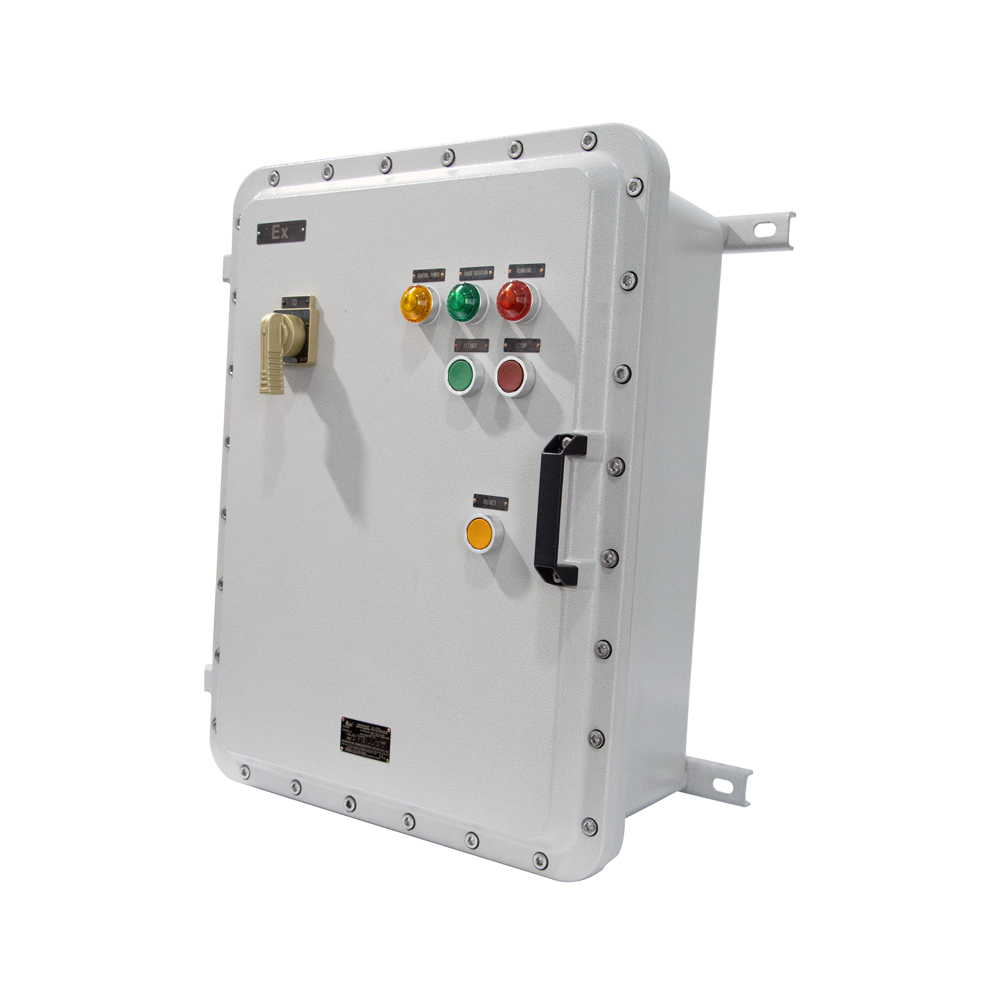

KDP03 Electrical Apparatus

Features:

  • Aluminum alloy enclosure with hinges and handles
  • Ex db IIB, Ex db IIB+H2, Ex tb IIC
  • ATEX ,IECEx(Zone1&2,Zone2&22)
  • 5 years performance warranty

lmportant Specification:

Certificate ATEX, IECEx
Classification Group II, Zone 1 &21 and 2&22
Ex Mark Ex db, Ex tb
IP Grade IP66
Rated voltage Maximum 1000V AC, 1500V DC
Rated current Maximum 1200A
Ambient Temperature -20°C~+40/60°C, -40°C~+40/60°C
Built-in components Power circuit breaker
  Branch switch
  Terminal block
  Indicator
  Button
  Control switch
  AC contactor
  Thermal relay
  PLC programmer
  Soft starter
Enclosure Aluminum alloy enclosure, powder coated, Industrial grey with dark lines texture (RAL7035)
Rain shade Bended steel plate surface powder coated, industrial grey with dark lines texture (RAL7035) or stainless steel 304/316, please note when needed
Exposed fastener Stainless steel
Installation method Wall type , Stand type
Cable Entry M16×1.5-M63×1.5(default, exact size according to requirement) , NPT thread (optional)

Case study

KDP03 Series Explosion proof Electrical Apparatus, suitable for Zone 1 and Zone 2, Zone 21 and Zone 22 area. Our KDP03 Series installed in

Malaysia Petranas-Chemical Ethylene Project
Malaysia Petranas-Chemical Ethylene Project
Malaysia Petranas-Chemical Ethylene Project
Malaysia Petranas-Chemical Ethylene Project
