| Certificate | ATEX, IECEx |
| Classification | Group II, Zone 1 &21 and 2&22 |
| Ex Mark | Ex db, Ex tb |
| IP Grade | IP66 |
| Rated voltage | Maximum 690V AC |
| Rated current | Maximum 200A |
| Ambient Temperature | -20°C~+40/60°C, -40°C~+40/60°C |
| Built-in components | Power circuit breaker |
| Branch switch | |
| Terminal block | |
| Block Indicator | |
| Button | |
| Control switch | |
| AC contactor | |
| Thermal relay | |
| Enclosure | Aluminum alloy enclosure, powder coated, Industrial grey with dark lines texture (RAL7035) |
| Rain shade | Bended steel plate surface powder coated, industrial grey with dark lines texture (RAL7035) or stainless steel 304/316, please note when needed |
| Exposed fastener | Stainless steel |
| Installation method | Wall type , Stand type |
| Cable Entry | M16×1.5-M63×1.5(default, exact size according to requirement) , NPT thread (optional) |

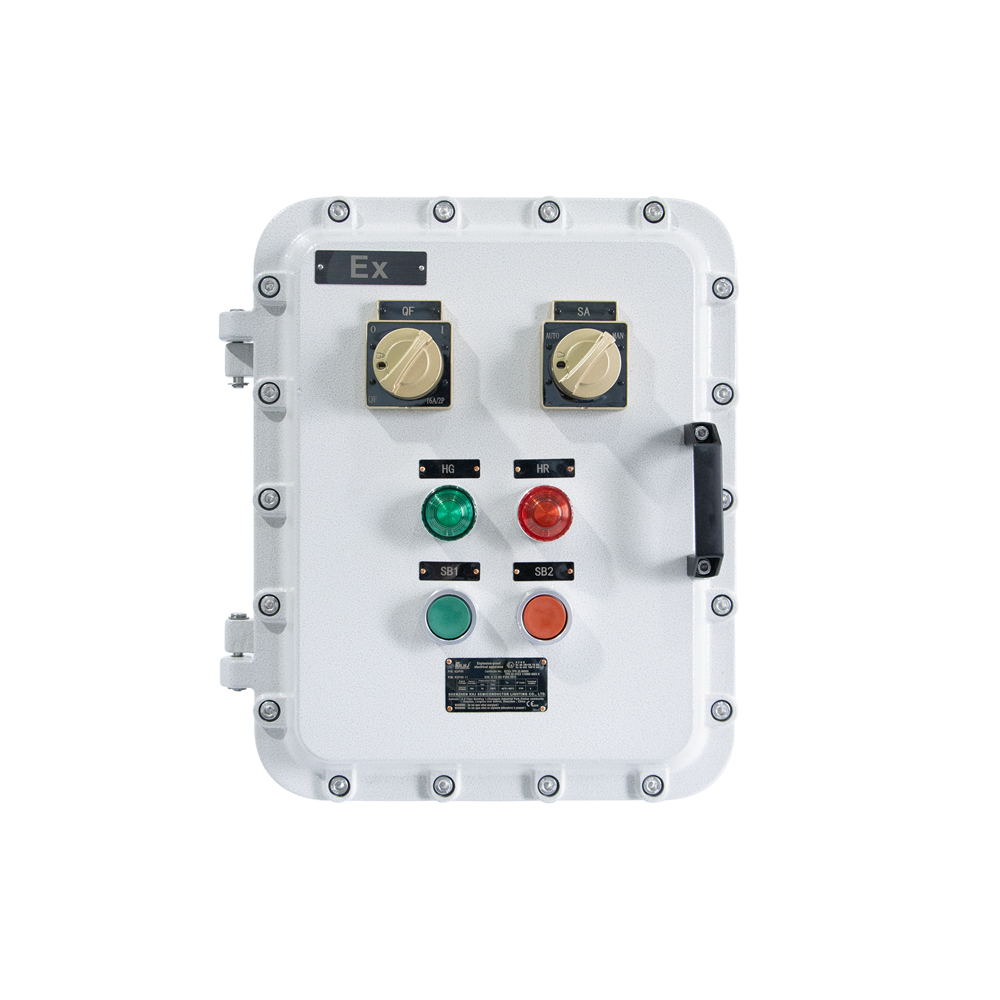

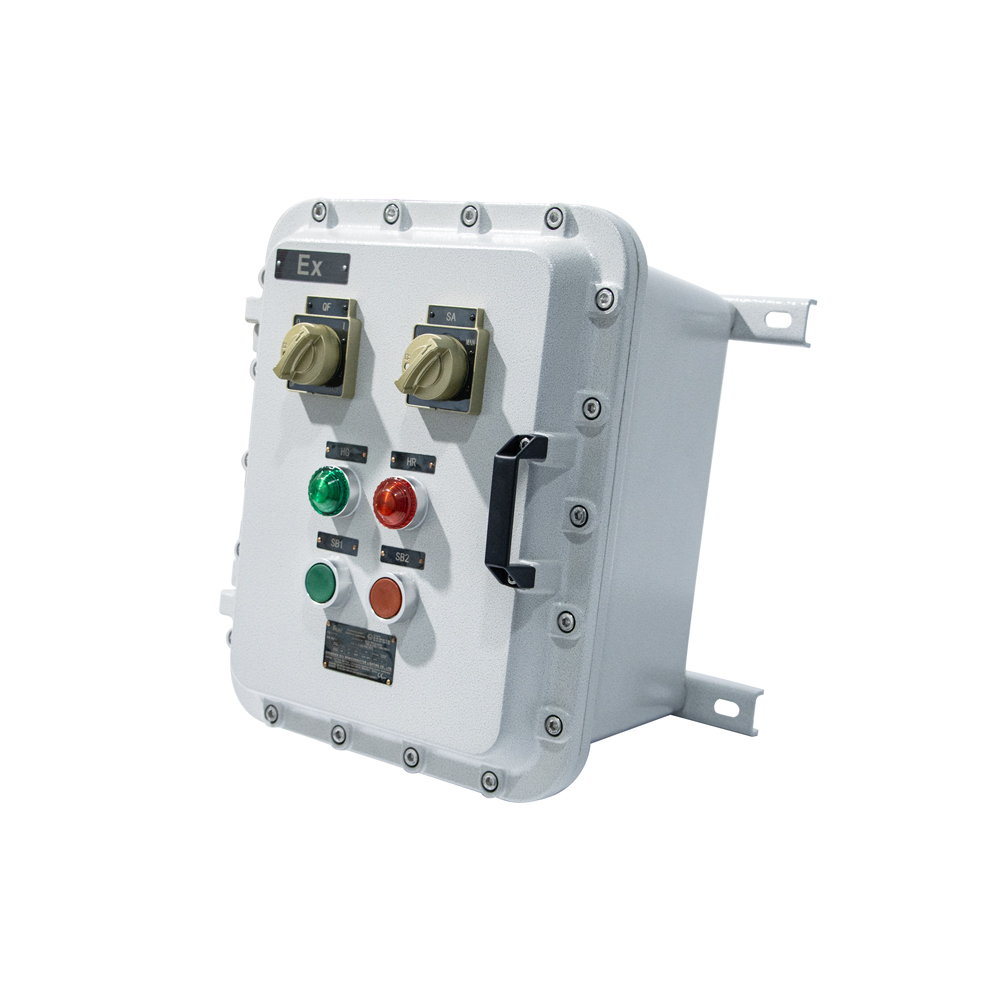

KDP06 Series Explosion proof Electrical Apparatus, suitable for Zone 1 and Zone 2, Zone 21 and Zone 22 area.
Our KDP06 Series installed in
Focus on security and energy-saving, Carry brightness and Sustainable future.
