KBH03 Series- Explosion proof Terminal Box

Features:

Application in hazardous area : Zone 0, Zone 1 and Zone 2, Zone 21 and Zone 22
This series have 4 types explosion protection (Ex eb, Ex ia, Ex ib and Ex tb IIIC), which can meet various requirements.
There are 7 types of enclosure, easy to customize the current, terminals, size and direction of entry according to customer requirements.
Stainless steel exposed fastener, anti dropping structure.
Easy installation and maintenance.

Contact us for this product

lmportant Specification:

Certificate	ATEX, IECEx
Ex mark	Ex ia IIC T6 Ga Ex ib IIC T6 Gb Ex eb IIC T6/T5 Gb Ex tb IIIC T80/T95°C Db
Enclosure material	GRP (Polyester resin, glass fibre reinforced), anti-static
Enclosure color	Black
Brand of terminal	International brand
Exposed fastener	Stainless steel
Rated voltage	Ex e, Ex tb : Max 690VAC ,220VDC Ex i, Ex tb: Max AC/DC 36V
IP Rating	IP66
Ambient temperature	Ex e, Ex tb : -40°C~+40/55°C Ex i, Ex tb: -40°C~+50/60/65°C
Cable gland	KBM Series Explosion-proof Cable Glands is recommended

1.Catalog

Catalog 2023.pdf
Click Here

Simple Catalog 2024.pdf
Click Here
2.Specification

KBH03-Explosion-proof Terminal Box.pdf
Click Here

Case study

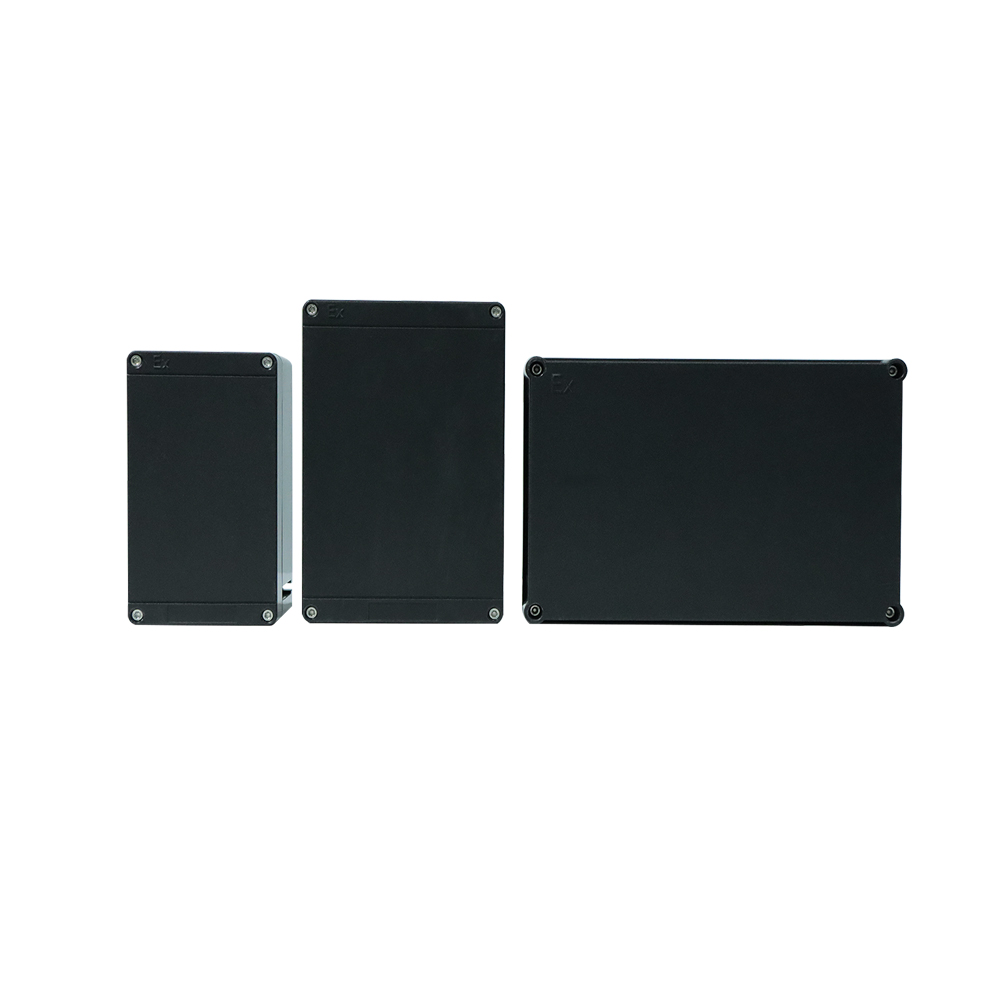

The KBH03 series has 7 different size from small to large one,which are made from impact-resistant glass-fibre-reinforced polyester resin . They also meet the requirements of the IP66 degree of protection, making them perfect for use in harsh and hazardous environments.
