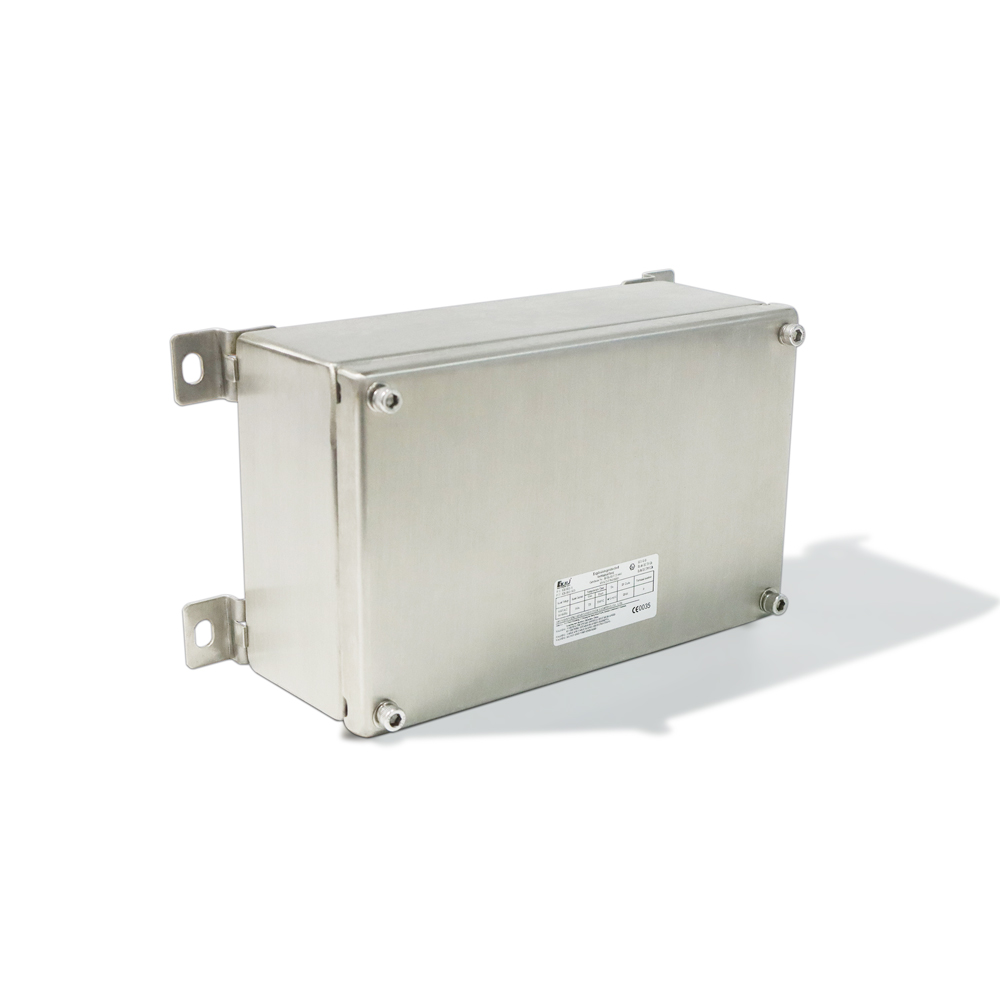

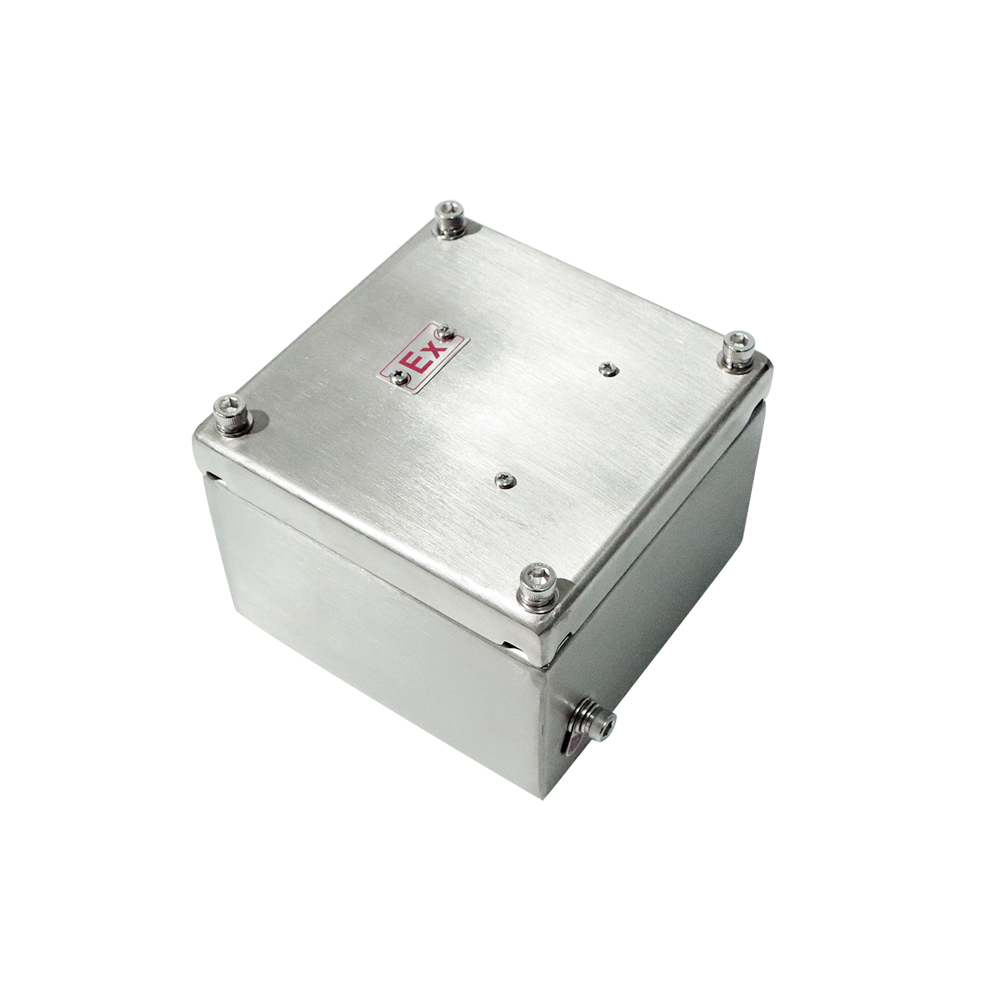

KBH02-S Series- Explosion proof Terminal Box

Features:

Application in hazardous area : Zone 0, Zone 1 and Zone 2, Zone 21 and Zone 22
This series have three types of explosion protection(Ex eb, Ex ia, Ex tb IIIC), which can meet various requirements.
There are 19 types of enclosure which the current, terminal, size and direction of entry can be customized based on customer requirements.
Stainless steel exposed fastener, anti dropping structure.
Easy installation and maintenance.

Contact us for this product

lmportant Specification:

Certificate	ATEX, IECEx
Ex mark	Ex ia IIC T6 Ga Ex ia IIC T6 Gb Ex eb IIC T6/T5 Gb Ex tb IIIC T80/T95/T130°C Db
Enclosure material	Stainless steel
Brand of terminal	Type A: open crimping type terminal in enclosure Type B (Standard): International brand
Exposed fastener	Stainless steel
Rated voltage	Ex e, Ex tb : Max 690VAC ,250VDC Ex i, Ex tb: Max AC/DC 36V
IP Rating	IP66
Ambient temperature	Ex e, Ex tb : -40°C~+40/55°C Ex i, Ex tb: -40°C~+40/45/55/60°C
Cable gland	KBM Series Explosion-proof Cable Glands is recommended

1.Catalog

Catalog 2023.pdf
Click Here

Simple Catalog 2024.pdf
Click Here
2.Specification

KBH02-S KHJ Ex SS JB-1.1.pdf
Click Here

Case study

The KBH02-S series has 19 types of enclosure which the current, terminal, size and direction of entry can be customized based on customer requirements.

They also meet the requirements of the IP66 degree of protection, making them perfect for use in harsh and hazardous environments.
