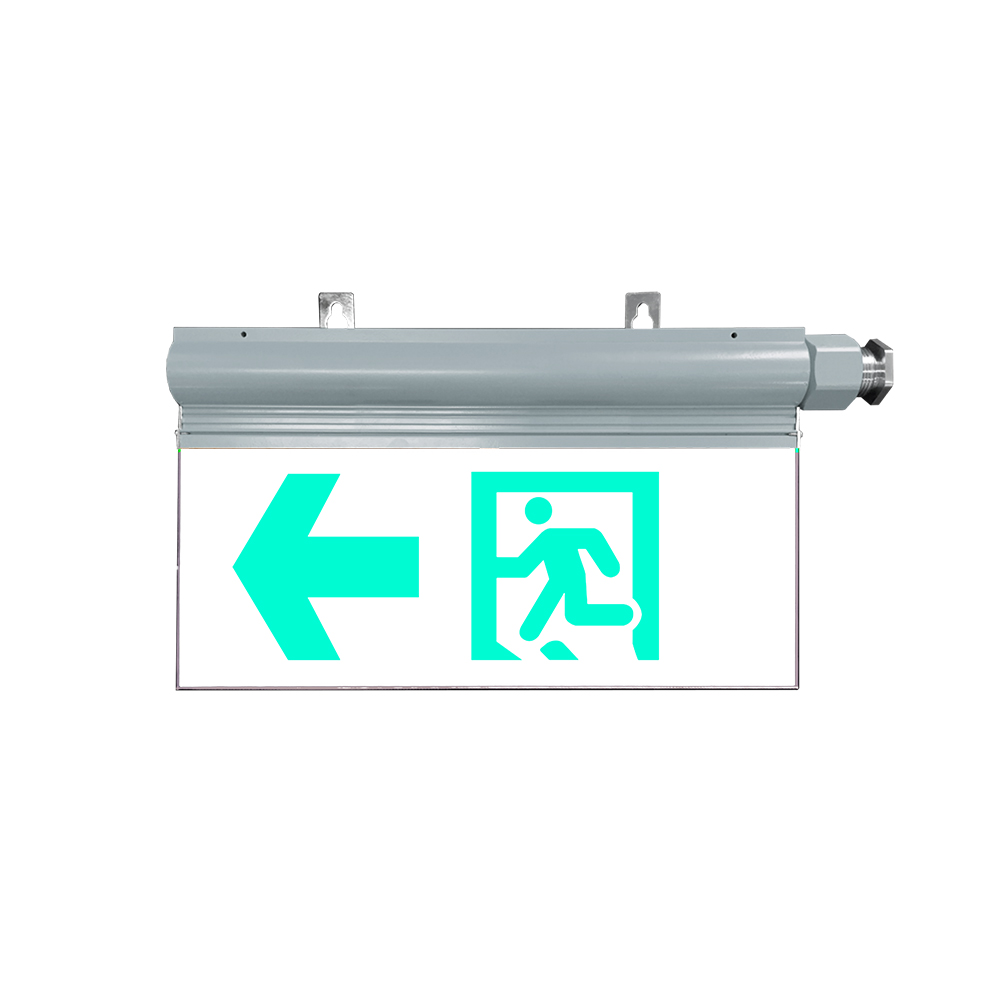

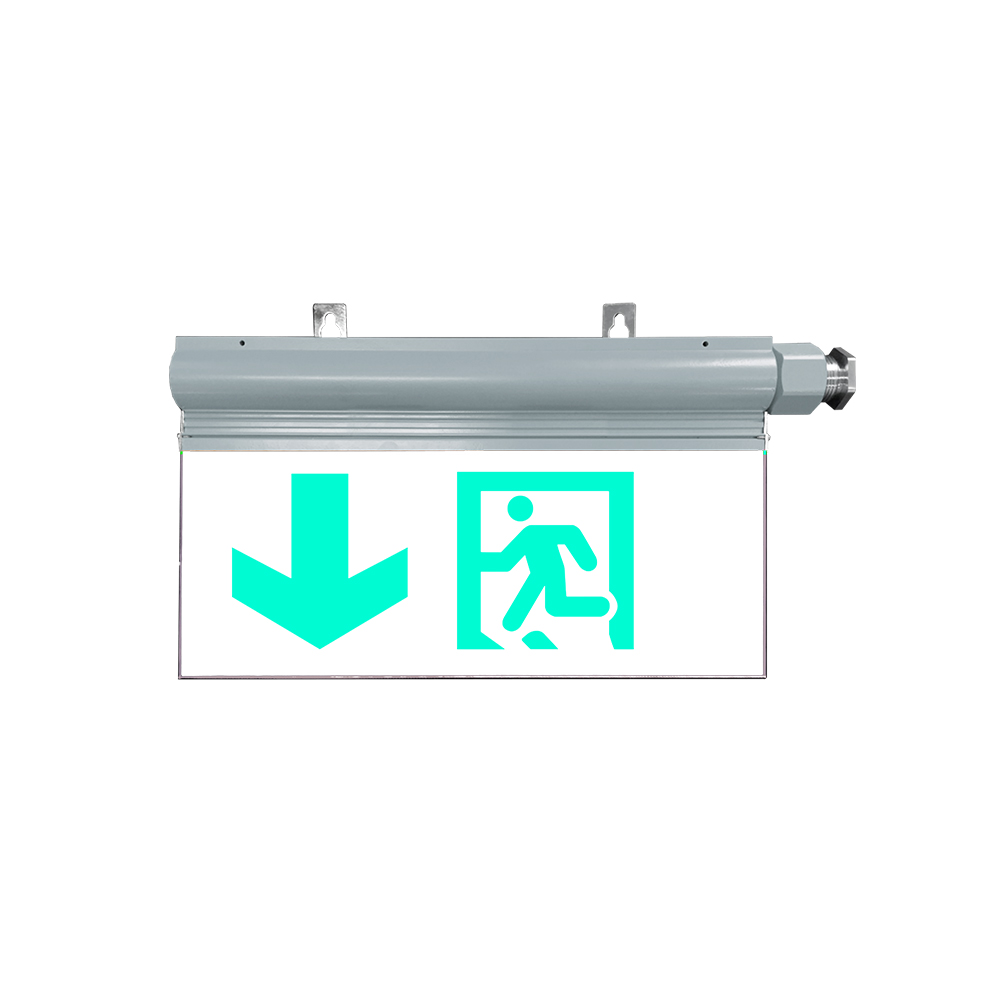

KHJ Lighting-Polaris LED EXIT Light


  • Normal condition 6W, emergency condition 0.5W
  • Widely Voltage: 100-277VAC
  • 3 hours battery back up
  • Green letter and white letter for optional
  • Vibration and shock resistant
  • 3 years performance warranty

lmportant Specification:

Certificate ATEX, CE, RoHS
Classification Group II,Zone 1 &21 and 2&22
Ex Mark Ex mb ib, Ex tb
IP Grade IP54
Rated power Normal:6W;Emergency:0.5W
Voltage 100-277VAC
Ambient Temperature -20℃-+55℃
Luminaire Efficacy N/A (删)
Power factor >0.98
THD N/A(删)
Battery Back Up: 180 Min
Weight 3.1Kg
Size 337*310*76mm
Enclosure Copper-free Aluminium alloy
Color Orange,RAL2011(optional grey RAL7040)
Protective cover
Cable Entry 1XNPT 3/4” (M20*1.5, M25*1.5 are optional)

Case study

Polaris luminaire with self-contained battery unit and automatic function monitoring. Nickel-hydrogen(Ni-MH) battery, 300 cycles life span. Overcharge, over discharge and short circuit protection. Normal use 6W, Emergency power 0.5W. Battery duration time about 3 hours

Our Polaris installed in
