| Certificate | ATEX, IECEx, CE, RoHS |
| Classification | Group II, Zone 1 &21 and 2&22 |
| Ex Mark | Ex db eb, Ex tb |
| IP Grade | IP66 |
| Rated power | Normal:Max 12W;Emergency:5W |
| Runtime | ≤180 min |
| Voltage | 220-240VAC/311-339 VDC |
| Ambient Temperature | -20°C~+55°C |
| Weight | 6.5kg |
| Size | 465*187*124mm |
| Enclosure | Aluminum alloy enclosure, powder coated |
| Color | Industrial grey with dark lines texture (RAL7040) |
| Transparent cover | Tempered glass, resistant to 7J impact |
| Cable Entries | 2XNPT 3/4” (M20*1.5, M25*1.5 optional) |

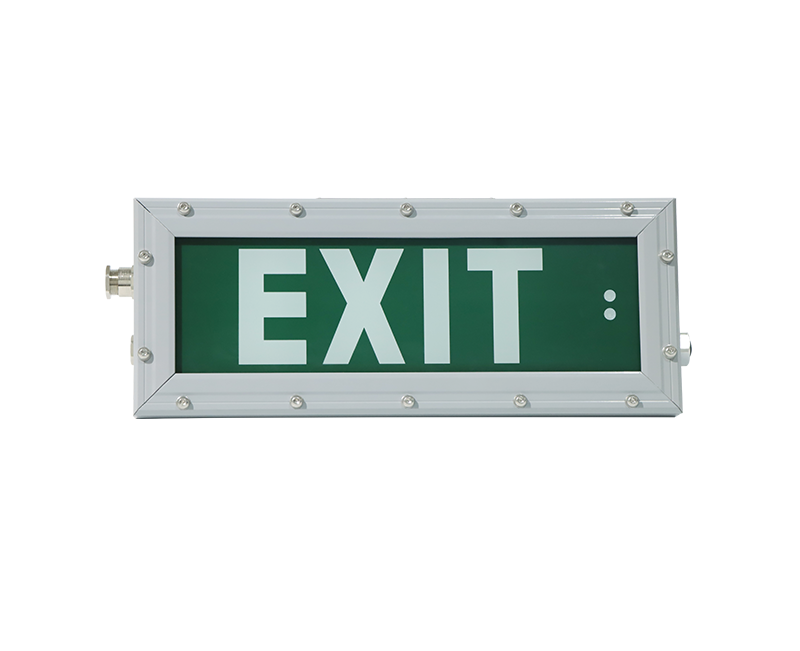

The Swordfish series LED explosion-proof EXIT lighting can be widely used for hazardous area Zone 1&2, Zone 2&22 where flammable vapors, gases, ignitable dusts, fibers or flyings are present.
Focus on security and energy-saving, Carry brightness and Sustainable future.
