| Certificate | ATEX, CE, RoHS |
| Classification | Group II,Zone 2&22 |
| Ex Mark | Ex nR, Ex tc |
| IP Grade | IP66 |
| Rated power | 80W/100W/120W/150W |
| Voltage | 100-277 VAC 141-392 VDC |
| Ambient Temperature | -40°C~+55°C |
| Luminaire Efficacy | Up to 142lm/w |
| Power factor | >0.98 |
| THD | <10% |
| Emergency function | N/A |
| Weight | 10.5Kg |
| Size | 336*336*163mm |
| Enclosure | Die-casting aluminium alloy |
| Color | Grey RAL7040 |
| Protective cover | Tempered glass, stand 7J impact |
| Cable Entry | 2XNPT 3/4” (M20*1.5, M25*1.5 are optional) |

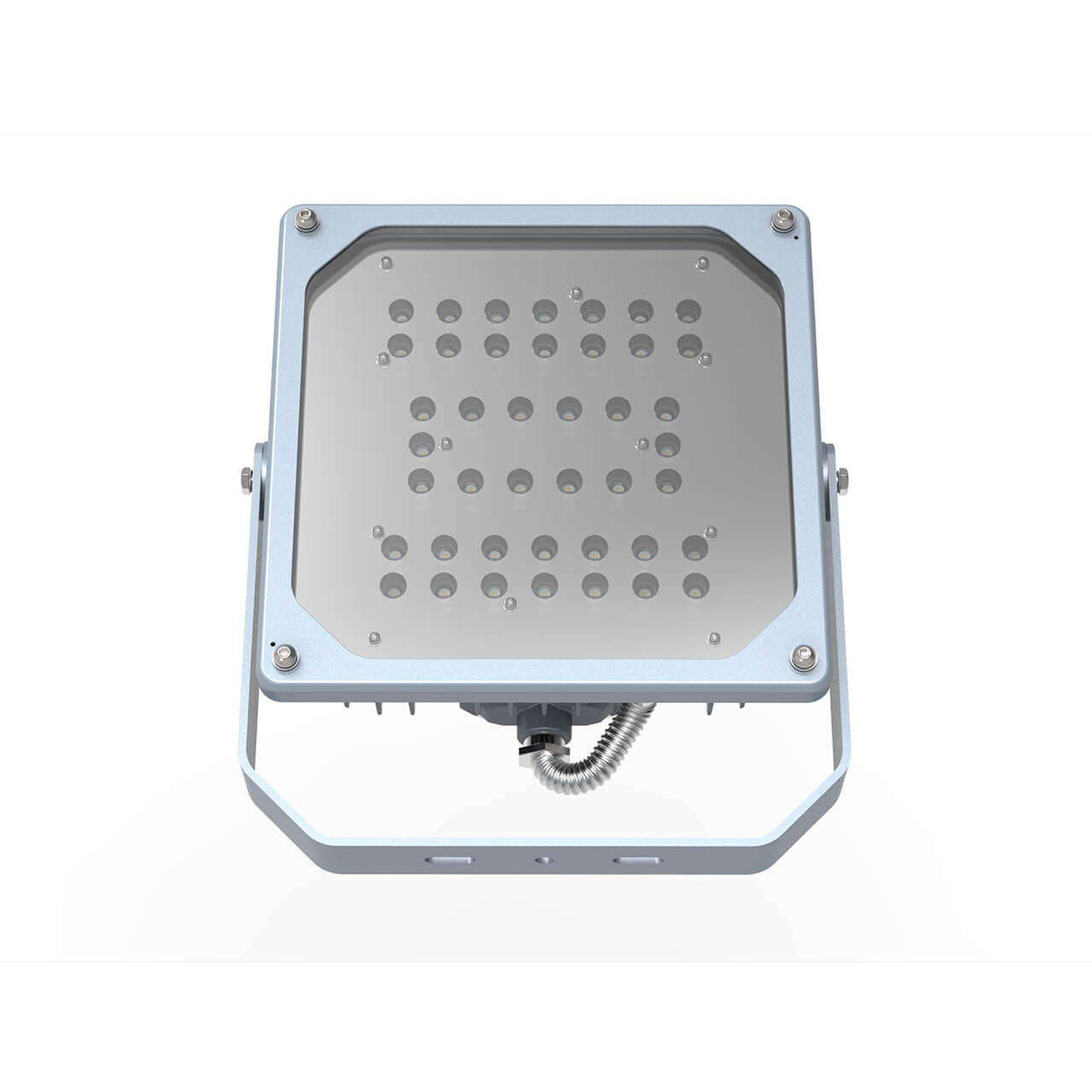

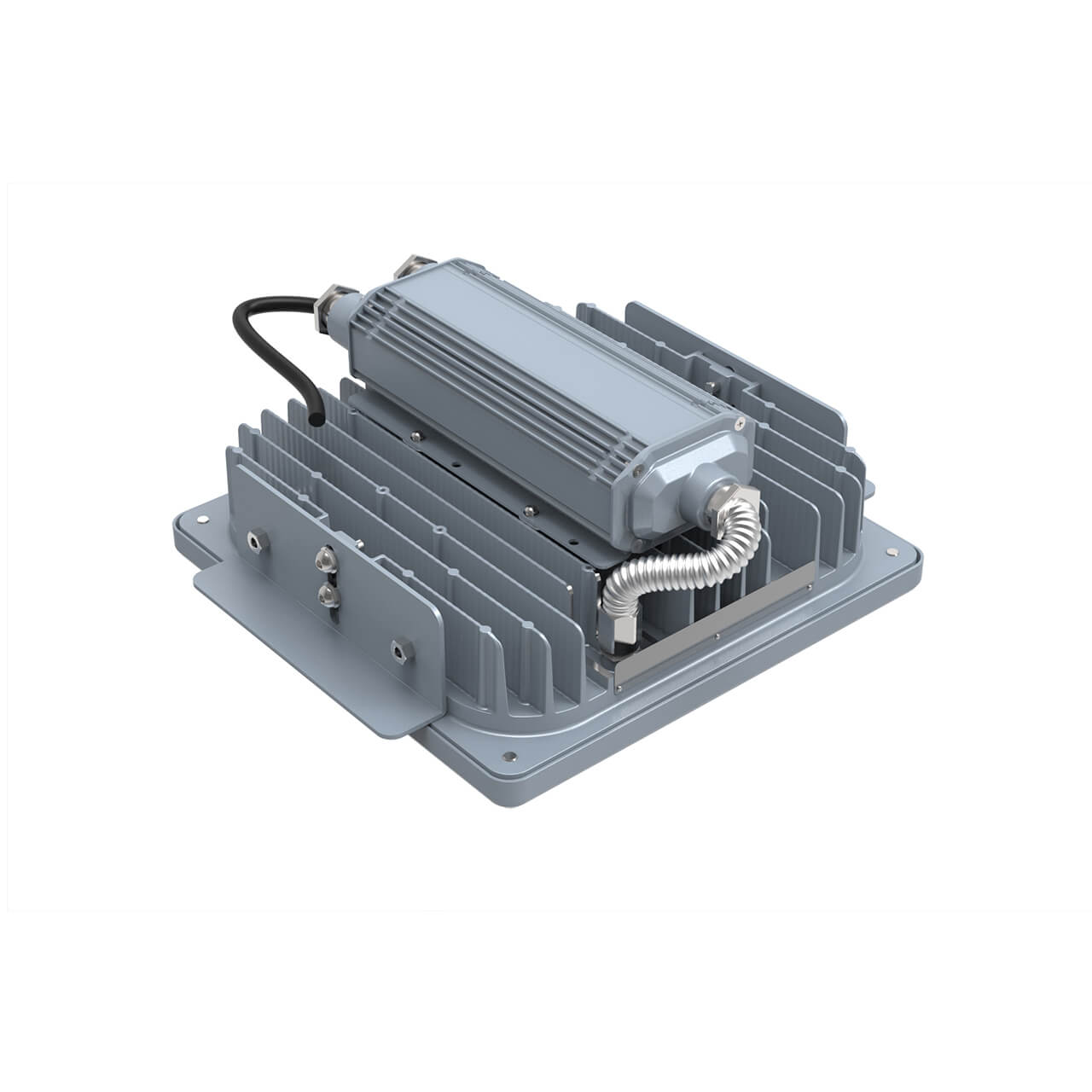

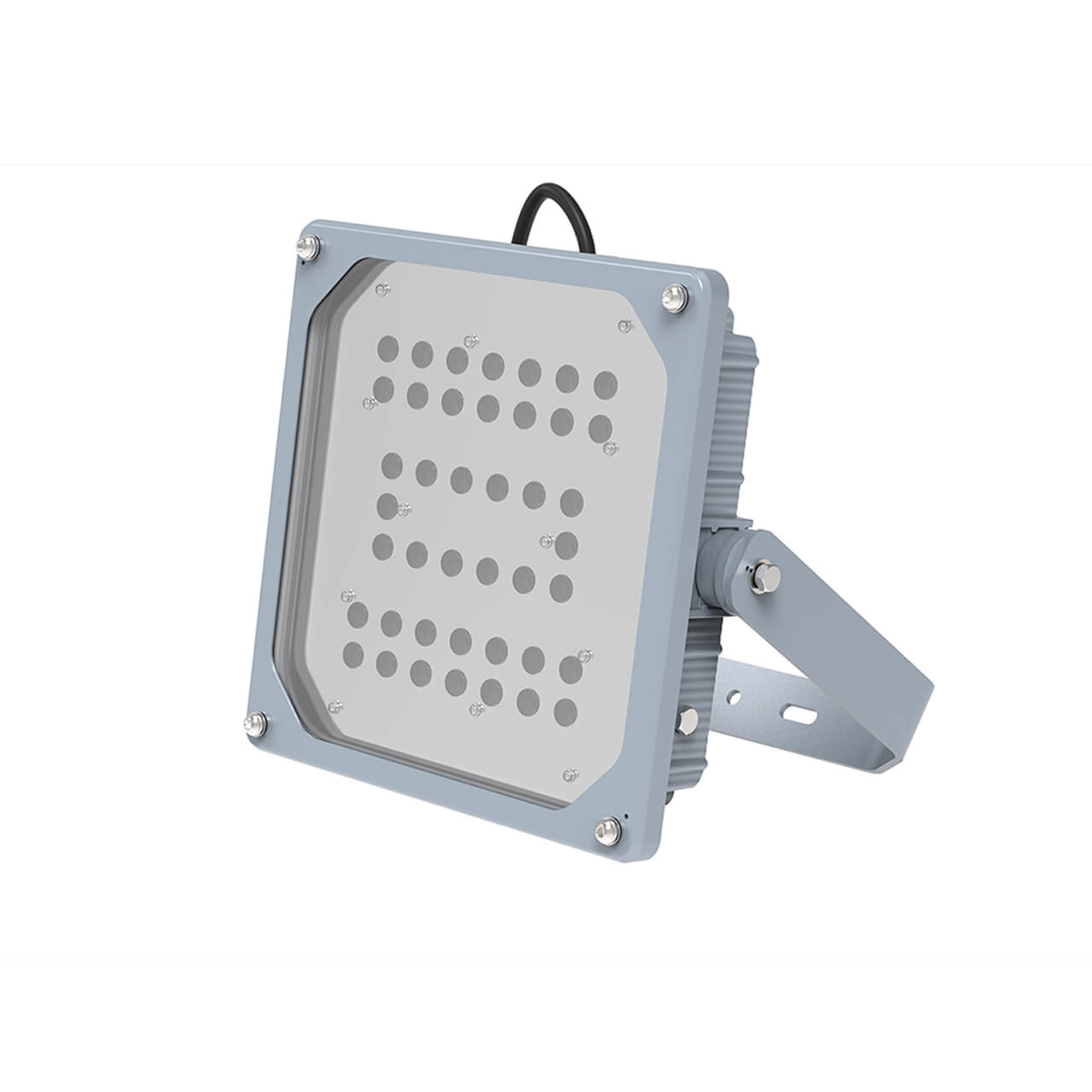

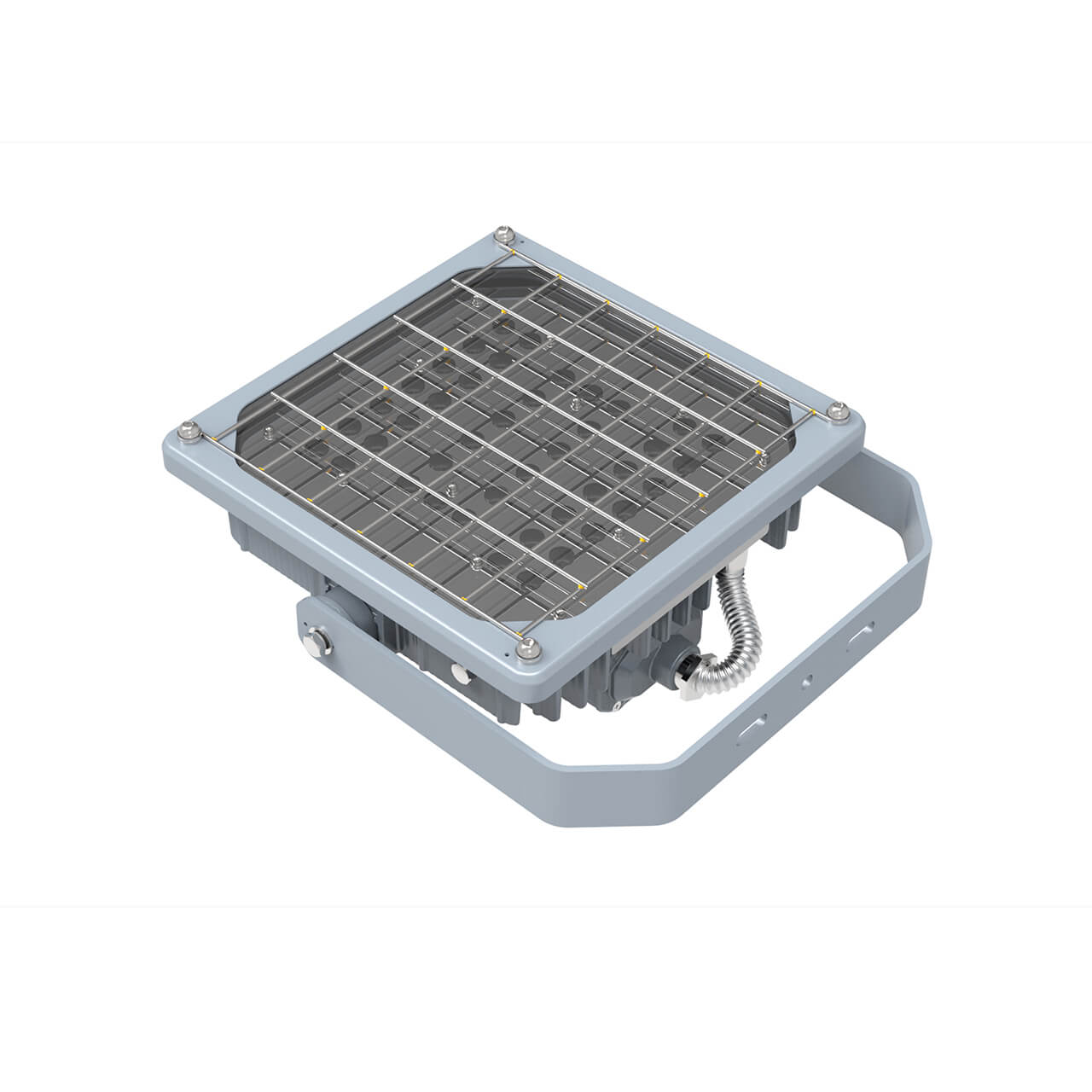

80W, 100W, 120W, 150W for optional, IP66, ambient Temp.-40~+55℃.Square shape, built in mount, designed for gas station.
Also suitable for warehouse and other Zone 2. Zone 22 area.
Focus on security and energy-saving, Carry brightness and Sustainable future.
