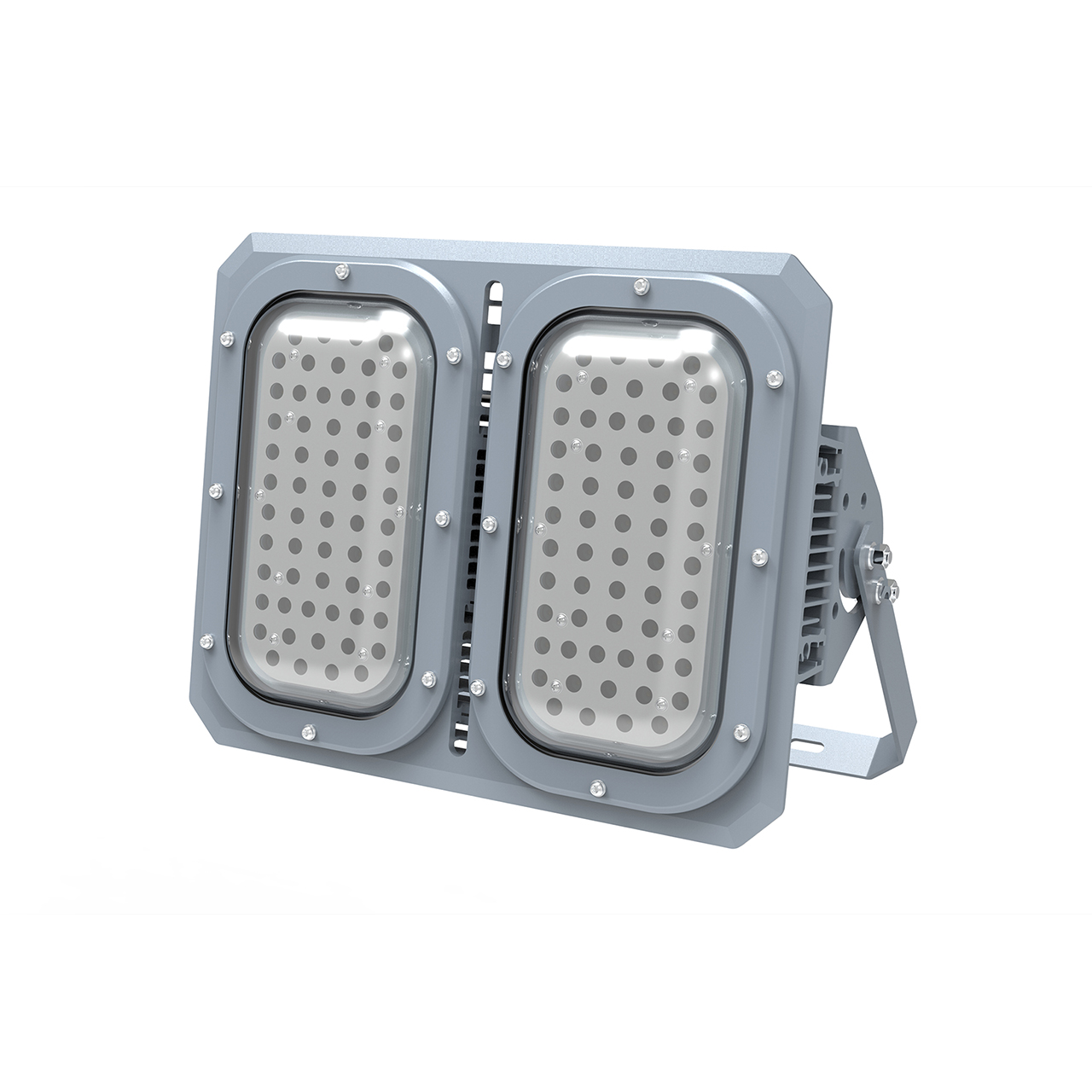

KHJ Lighting-Polar Bear Explosion-proof LED Floodlight


  • Wide power range from 80W to 240W
  • Luminaire efficancy up to 140lm/w
  • Widely Voltage: 100-277 VAC/220-240 VAC/100-130 VAC/ 141-392 VDC/311-339 VDC/141-184 VDC
  • Different beam angle for optional(Narrow, Medium,Wide, Street light)
  • Copper-free Aluminium enclosure, high impact resistance tempered glass lens.
  • All exposed fasteners with quality stainless steel 316

lmportant Specification:

Certificate ATEX, IECEx , CE, RoHS
Classification Group II,Zone 2 &22
Ex Mark Ex Ex nR, Ex tc
IP Grade IP66
Rated power 80W/120W/160W/200W/240W
Voltage 100-277 VAC/220-240 VAC/100-130 VAC/ 141-392 VDC/311-339 VDC/141-184 VDC
Ambient Temperature -40℃-+55℃
Luminaire Efficacy Up to 140lm/w
Power factor >0.98
THD <10%
Weight 7.3Kg(80W)/11Kg(120W,160W)/18.4Kg(200W,240W)
Size 210*400*161mm(80W)/260*400*161mm(120W,160W)
Enclosure Copper-free Aluminium
Color Orange,RAL2011(optional grey RAL7040)
Protective cover Tempered glass,Stand 7J impact
Cable Entry 2XNPT 3/4” (M20*1.5, M25*1.5 are optional)

Case study

The Polar Bear series consist of 3 sizes :small size (80W),middle size (120-160 W)and large size (200-240 W),can be widely used for hazardous area Zone 2&22 where flammable vapors, gases,ignitable dusts, fibers or flyings are present;
Designed for use in oil and gas (including offshore), chemical, mining, pulp & paper and other hazardous environments.

Our Polar Bear installed in PENOLES Zinc&Lead Mine in Mexico

Polar Bear Case
Polar Bear Case
Polar Bear Case
Polar Bear Case
