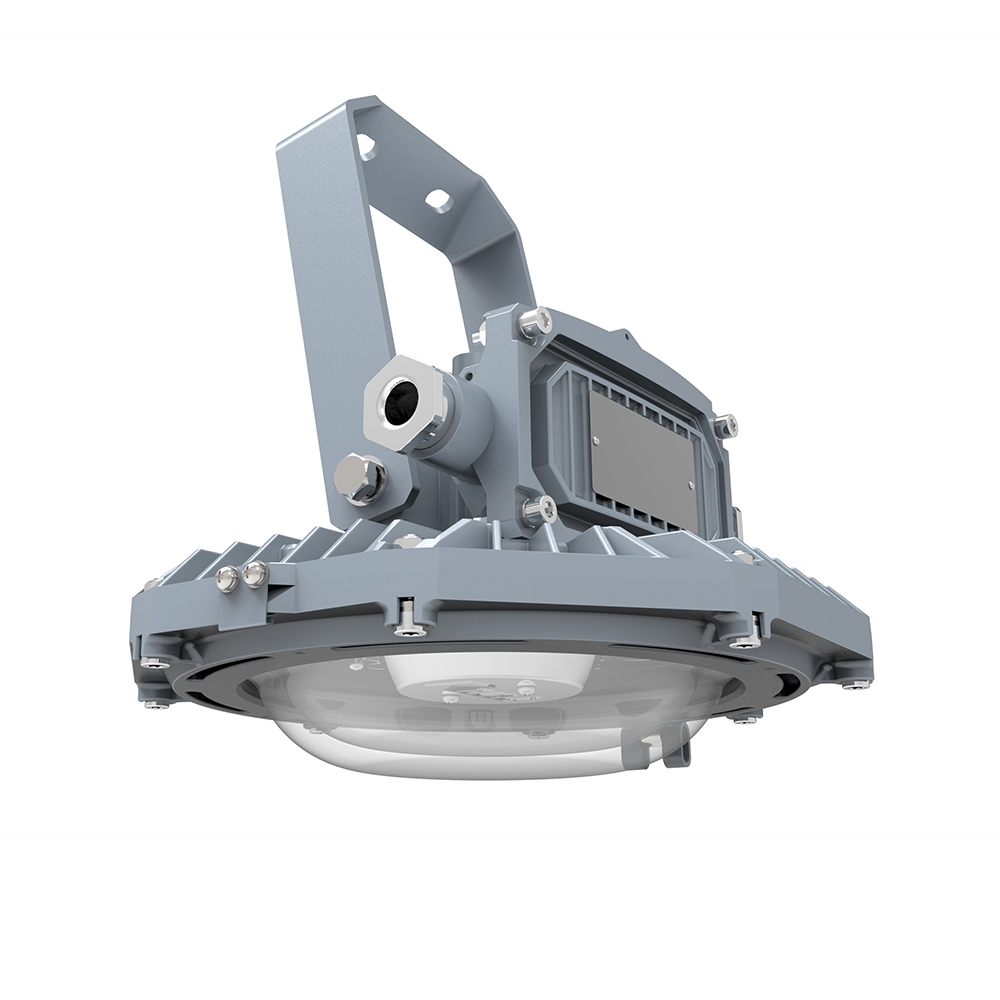

KHJ Lighting-Golden Frog Explosion-proof LED High Bay Light


  • 1.High efficacy LED Source with long lifespan>50,000 hours
  • 2.Low THD around 10%,Less interference
  • 3.Vibration and shock resistant
  • 4.Low maintenance
  • 5. Die casting aluminum alloy enclosure, high impact resistance tempered glass lens.
  • 6.5KV Surge Protection

lmportant Specification:

Certificate ATEX, IECEx , CE, RoHS
Classification Group II,Zone 1 &21 and 2&22
Ex Mark Ex d, Ex t
IP Grade IP66
Rated power 30W/60W
Voltage 24-48VAC/ 100-240VAC
10-30VDC /24-48VDC / 141-339VDC
Ambient Temperature -40°C~+55°C
Luminaire Efficacy Up to 140lm/w
Power factor >0.98
THD <10%
Weight 5.5kg
Size 311*284*190mm
Enclosure Die-casting aluminium alloy
Color Orange, RAL 2011( optional grey RAL7040)
Protective cover Tempered glass, stand 7J impact
Cable Entry 2 X NPT 3/4’’ (M20*1.5 , M25*1.5 are optional)

Case study

The Golden Frog series can be widely used for hazardous area Zone 1&2 ,Zone 2&22 with energy efficiency and durability for the longest-lasting performance. Designed for use in oil and gas (including offshore), chemical, mining, pulp & paper and other hazardous environments.

Our Golden Frog series installed in Petronas Chemical Polyethylene Sdn Bhd offers maximum reliability and high performance.
