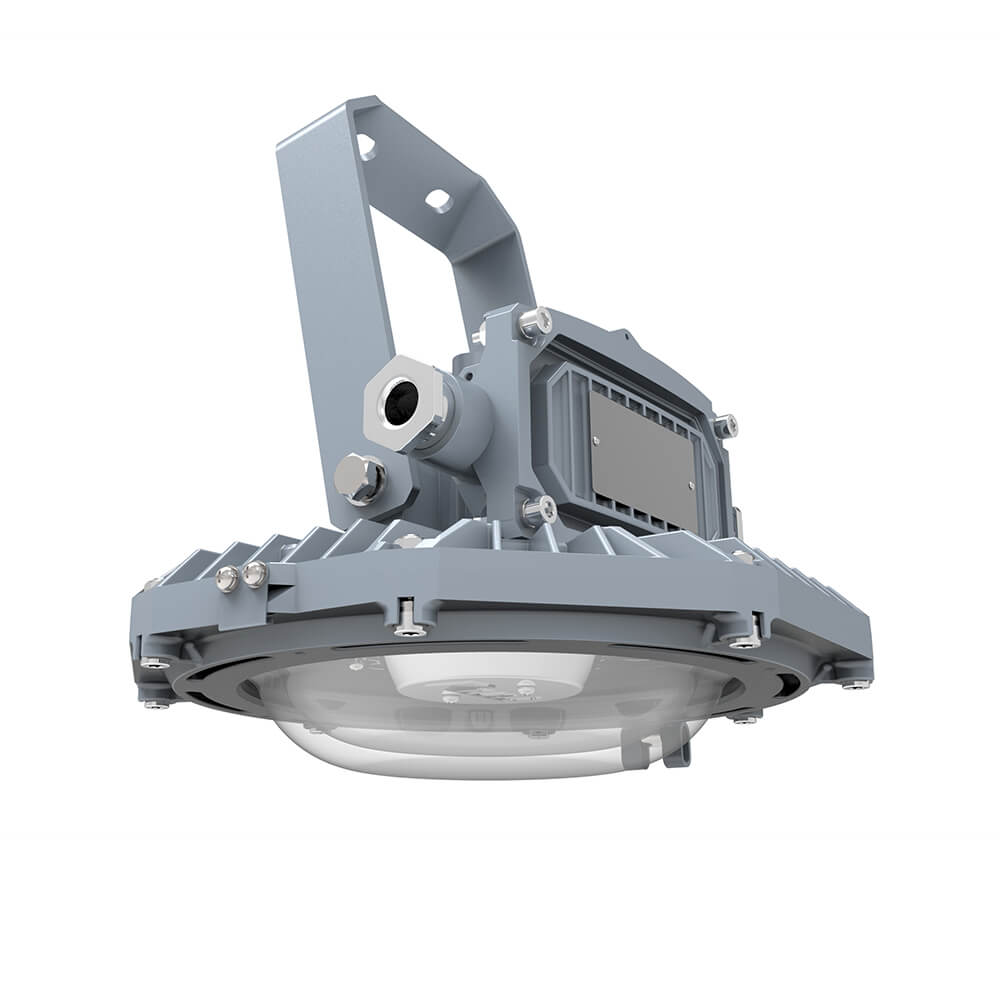

KHJ Lighting-Golden Frog LED High Bay Light


  • High efficacy LED Source with long lifespan>50,000 hours
  • Low THD around 10%,Less interference
  • Vibration and shock resistant
  • Low maintenance
  • Die casting aluminum alloy enclosure, high impact resistance tempered glass lens.
  • 5KV Surge Protection

lmportant Specification:

Rated power 30W/60W
IP Grade IP66
Voltage 24-48VAC/ 100-240VAC
10-30VDC /24-48VDC / 141-339VDC
Ambient Temperature -40°C~+55°C
Luminaire Efficacy Up to 140lm/w
Power factor >0.98
THD <10%
Weight 5.5kg
Size 311*284*190mm
Enclosure Die-casting aluminium alloy
Color Orange, RAL 2011( optional grey RAL7040)
Protective cover Tempered glass, stand 7J impact
Cable Entry 2 X NPT 3/4’’ (M20*1.5 , M25*1.5 are optional)

Case study

We provides high performance industrial led fixtures and the overall lighting solutions for our customers, the gold frog has 30W and 60W with widely voltage supply, can satisfy the different requirements.
